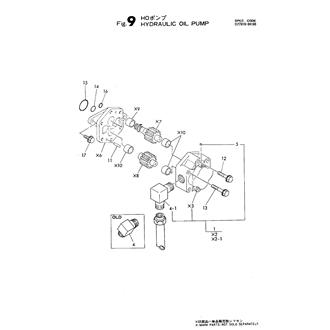

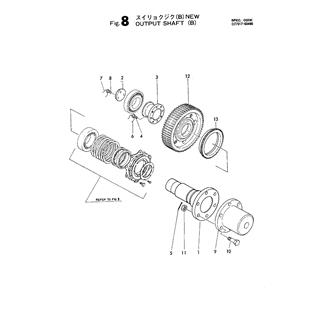

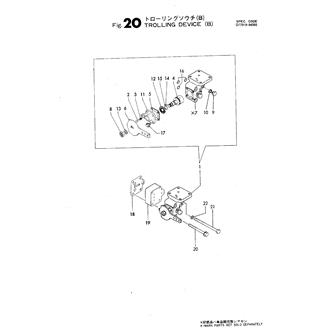

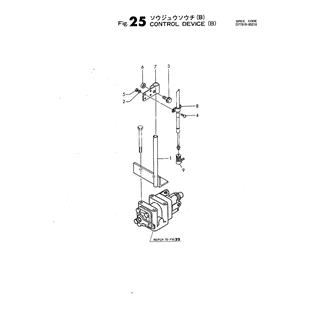

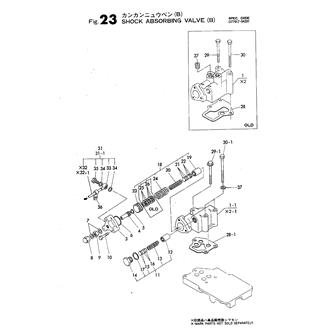

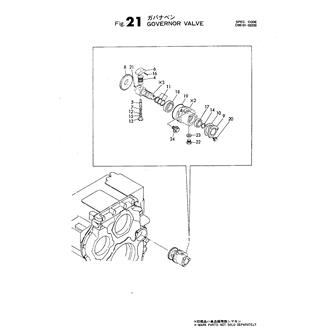

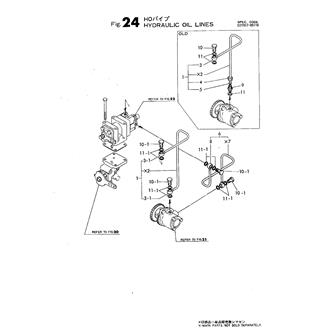

4.56 B Large Grid View Table View FIG 1. CLUTCH HOUSING 0CG10-M15708_0001_04 Information FIG 10. HYDRAULIC OIL LINES 0CG10-M15708_0010_04 Information FIG 11. LUB.OIL COOLER 0CG10-M15708_0011_04 Information FIG 12. SAFETY VALVE 0CG10-M15708_0012_04 Information FIG 13. LUB.OIL STRAINER 0CG10-M15708_0013_04 Information FIG 2. FLEXIBLE JOINT 0CG10-M15708_0002_04 Information FIG 20. TROLLING DEVICE (B) 0CG10-M15708_0020_04 Information FIG 21. GOVERNOR VALVE 0CG10-M15708_0021_04 Information FIG 22. TROLLING VALVE 0CG10-M15708_0022_04 Information FIG 23. SHOCK ABSORBING VALVE(B) 0CG10-M15708_0023_04 Information FIG 24. HYDRAULIC OIL LINES 0CG10-M15708_0024_04 Information FIG 25. CONTROL DEVICE (B) 0CG10-M15708_0025_04 Information FIG 26. REMOTE CONTROL DEVICE(A-2,B) 0CG10-M15708_0026_04 Information FIG 27. REMOTE CONTROL PASSIVE UNIT 0CG10-M15708_0027_04 Information FIG 28. TOOLS (A) 0CG10-M15708_0028_04 Information FIG 29. TOOLS (B) OPTIONAL PARTS 0CG10-M15708_0029_04 Information FIG 3. INPUT SHAFT 0CG10-M15708_0003_04 Information FIG 30. GASKET SET 0CG10-M15708_0030_04 Information FIG 4. REVERSE SUPPORT SHAFT 0CG10-M15708_0004_04 Information FIG 7. OUTPUT SHAFT(B) 0CG10-M15708_0007_04 Information FIG 8. OUTPUT SHAFT(B) 0CG10-M15708_0008_04 Information FIG 9. HYDRAULIC OIL PUMP 0CG10-M15708_0009_04 Information
