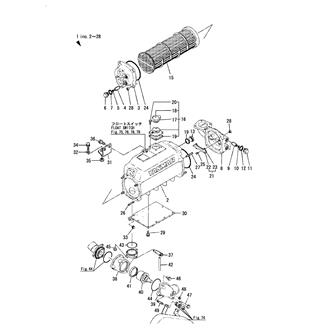

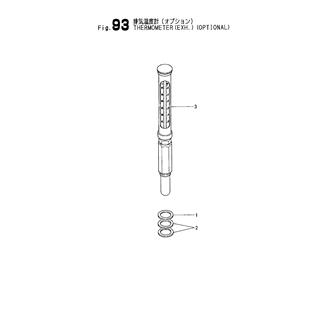

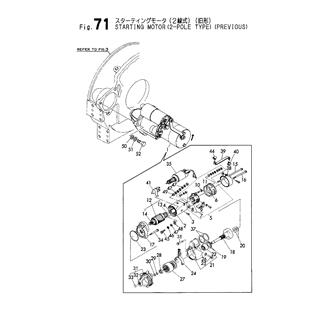

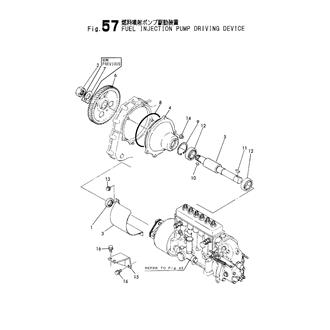

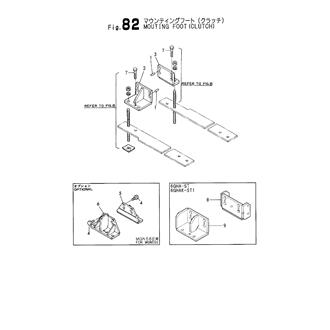

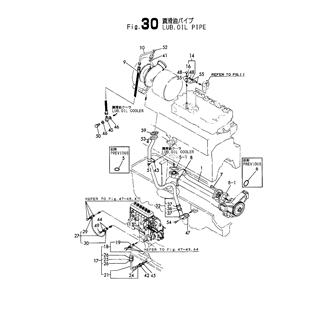

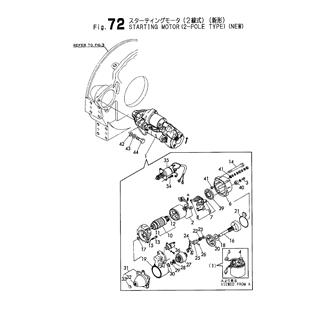

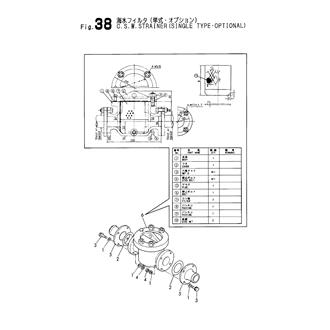

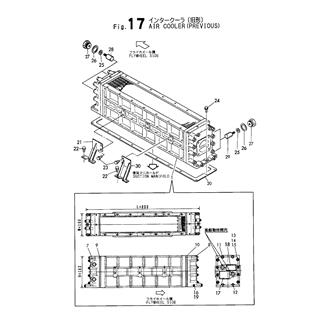

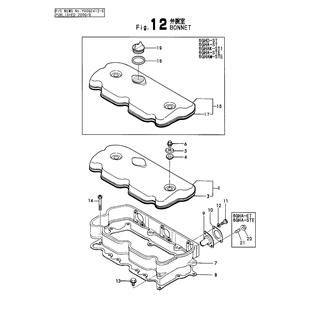

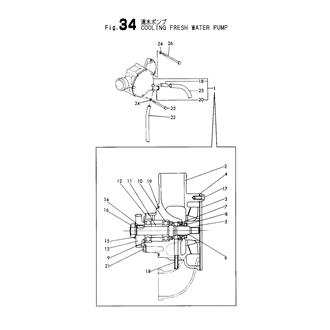

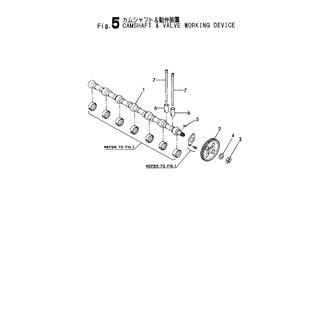

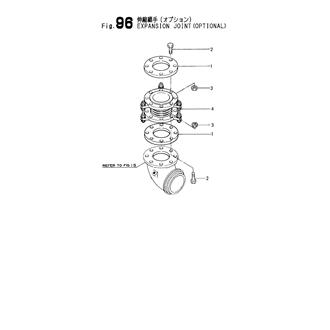

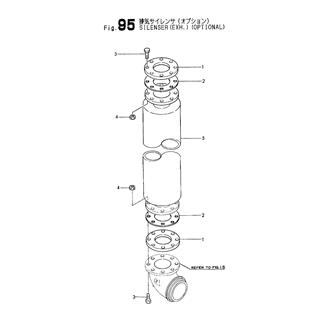

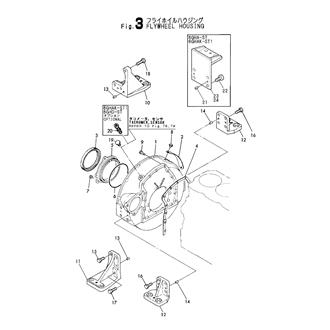

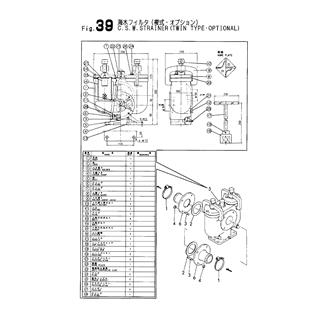

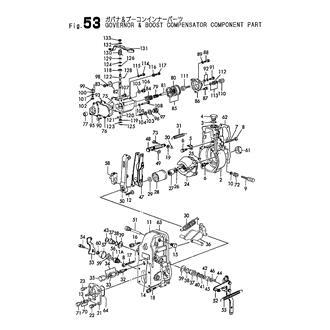

6GHD-ST Large Grid View Table View FIG 1. CYLINDER BLOCK 0CG10-M24102_0001_00 Information FIG 10. CYLINDER HEAD 0CG10-M24102_0010_00 Information FIG 102. (16B)EXHAUST BEND HISTORY 0CG10-M24102_0102_00 Information FIG 11. SUC/EXH. VALVE ROCKER ARM 0CG10-M24102_0011_00 Information FIG 12. BONNET 0CG10-M24102_0012_00 Information FIG 13. SUCTION MANIFOLD 0CG10-M24102_0013_00 Information FIG 14. EXHAUST MANIFOLD 0CG10-M24102_0014_00 Information FIG 15. TURBINE 0CG10-M24102_0015_00 Information FIG 16. TURBINE(INNER PARTS)(NEW) 0CG10-M24102_0016_00 Information FIG 17. AIR COOLER(PREVIOUS) 0CG10-M24102_0017_00 Information FIG 18. AIR COOLER(NEW) 0CG10-M24102_0018_00 Information FIG 2. GEAR HOUSING 0CG10-M24102_0002_00 Information FIG 20. AIR CONNECTING PIPE 0CG10-M24102_0020_00 Information FIG 21. CRANKSHAFT, FLYWHEEL & PISTON 0CG10-M24102_0021_00 Information FIG 22. IDLE GEAR 0CG10-M24102_0022_00 Information FIG 23. LUB. OIL PUMP 0CG10-M24102_0023_00 Information FIG 24. LUB. OIL COOLER 0CG10-M24102_0024_00 Information FIG 25. LUB. OIL PRESS. REGULATING VALVE 0CG10-M24102_0025_00 Information FIG 26. LUB. OIL STRAINER 0CG10-M24102_0026_00 Information FIG 27. LUB. OIL WASTE PUMP 0CG10-M24102_0027_00 Information FIG 28. LUB. OIL SUCTION PIPE 0CG10-M24102_0028_00 Information FIG 29. LUB. OIL SEMI-DRY SUMP 0CG10-M24102_0029_00 Information FIG 3. FLYWHEEL HOUSING 0CG10-M24102_0003_00 Information FIG 30. LUB. OIL PIPE 0CG10-M24102_0030_00 Information FIG 33. COOLING SEA WATER PUMP 0CG10-M24102_0033_00 Information FIG 34. COOLING FRESH WATER PUMP 0CG10-M24102_0034_00 Information FIG 35. COOLING FRESH WATER COOLER 0CG10-M24102_0035_00 Information FIG 36. SUB-TANK 0CG10-M24102_0036_00 Information FIG 37. KINGSTON COCK 0CG10-M24102_0037_00 Information FIG 38. COOLING SEA WATER STRAINER(SINGLE TYPE OPTIONAL) 0CG10-M24102_0038_00 Information FIG 39. COOLING SEA WATER STRAINER(TWIN TYPE OPTIONAL) 0CG10-M24102_0039_00 Information FIG 4. LUB. OIL SUMP 0CG10-M24102_0004_00 Information FIG 40. BILGE PUMP(PREVIOUS) 0CG10-M24102_0040_00 Information FIG 41. ELECTRIC BILGE PUMP(24V) 0CG10-M24102_0041_00 Information FIG 43. COOLING SEA WATER PIPE 0CG10-M24102_0043_00 Information FIG 44. COOLING PIPE(FRESH WATER) 0CG10-M24102_0044_00 Information FIG 46. FUEL INJECTION PUMP 0CG10-M24102_0046_00 Information FIG 47. FUEL INJECTION PUMP COMPONENT PART 0CG10-M24102_0047_00 Information FIG 48. FUEL FEED PUMP COMPONENT PART 0CG10-M24102_0048_00 Information FIG 49. COUPLING COMPONENT PART 0CG10-M24102_0049_00 Information FIG 5. CAMSHAFT & VALVE WORKING DEVICE 0CG10-M24102_0005_00 Information FIG 50. TIMER COMPONENT PART 0CG10-M24102_0050_00 Information FIG 53. GOVERNOR & BOOST COMPENSATOR COMPONENT PART 0CG10-M24102_0053_00 Information FIG 55. FUEL INJECTION VALVE 0CG10-M24102_0055_00 Information FIG 56. FUEL INJECTION PUMP MOUNT 0CG10-M24102_0056_00 Information FIG 57. FUEL INJECTION PUMP DRIVING DEVICE 0CG10-M24102_0057_00 Information FIG 59. FUEL FILTER 0CG10-M24102_0059_00 Information FIG 6. BREATHER 0CG10-M24102_0006_00 Information FIG 60. OIL/WATER SEPARATER(OPTIONAL) 0CG10-M24102_0060_00 Information FIG 61. FUEL PIPE 0CG10-M24102_0061_00 Information FIG 64. ENGINE STOP DEVICE 0CG10-M24102_0064_00 Information FIG 65. ENGINE STOP DEVICE(OPTIONAL) 0CG10-M24102_0065_00 Information FIG 66. REMOTE CONTROL HEAD 0CG10-M24102_0066_00 Information FIG 67. CABLE SUPPORT 0CG10-M24102_0067_00 Information FIG 68. BOOST COMPENSATER CANCEL 0CG10-M24102_0068_00 Information FIG 69. STARTING MOTOR(1-POLE TYPE)(PREVIOUS) 0CG10-M24102_0069_00 Information FIG 7. LABEL 0CG10-M24102_0007_00 Information FIG 70. STARTING MOTOR(1-POLE TYPE)(NEW) 0CG10-M24102_0070_00 Information FIG 71. STARTING MOTOR(2-POLE TYPE)(PREVIOUS) 0CG10-M24102_0071_00 Information FIG 72. STARTING MOTOR(2P)(NEW) 0CG10-M24102_0072_00 Information FIG 73. GENERATOR 0CG10-M24102_0073_00 Information FIG 74. GENERATOR DRIVING 0CG10-M24102_0074_00 Information FIG 75. WIRE HARNESS & SENSOR(1-POLE TYPE)(PREVIOUS) 0CG10-M24102_0075_00 Information FIG 77. WIRE HARNESS & SENSOR(2-POLE TYPE)(PREVIOUS) 0CG10-M24102_0077_00 Information FIG 78. WIRE HARNESS & SENSOR(EARTH TYPE)(FROM 1992.12) 0CG10-M24102_0078_00 Information FIG 79. WIRE HARNESS & SENSOR(EARTH FLOAT TYPE)(FROM 1992.12) 0CG10-M24102_0079_00 Information FIG 8. ENGINE LIFTER & ENGINE BED(WOOD VESSEL) 0CG10-M24102_0008_00 Information FIG 80. BATTERY SWITCH 0CG10-M24102_0080_00 Information FIG 81. CLUTCH CONNECTOR 0CG10-M24102_0081_00 Information FIG 82. MOUNTING FOOT(CLUTCH) 0CG10-M24102_0082_00 Information FIG 85. LIMIT SWITCH(OPTIONAL) 0CG10-M24102_0085_00 Information FIG 86. CLUTCH LIMIT SWITCH(OPTIONAL) 0CG10-M24102_0086_00 Information FIG 87. CLUTCH LIMIT SWITCH(OPTIONAL) 0CG10-M24102_0087_00 Information FIG 88. CLUTCH LIMIT SWITCH(OPTIONAL) 0CG10-M24102_0088_00 Information FIG 89. INSTRUMENT PANEL(PREVIOUS) 0CG10-M24102_0089_00 Information FIG 9. ENGINE SET BOLT(STEEL VESSEL) 0CG10-M24102_0009_00 Information FIG 91. INSTRUMENT PANEL(FROM 1992.12) 0CG10-M24102_0091_00 Information FIG 93. THERMOMETER(EXH. OPTIONAL) 0CG10-M24102_0093_00 Information FIG 94. TOOL 0CG10-M24102_0094_00 Information FIG 95. SILENCER(EXH. OPTIONAL) 0CG10-M24102_0095_00 Information FIG 96. EXPANSION JOINT(OPTIONAL) 0CG10-M24102_0096_00 Information FIG 97. CLUTCH 0CG10-M24102_0097_00 Information FIG 98. GASKET SET(OPTIONAL) 0CG10-M24102_0098_00 Information FIG 99. SAFETY LABEL 0CG10-M24102_0099_00 Information
