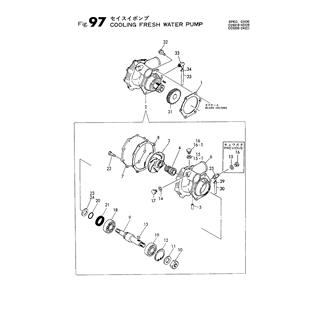

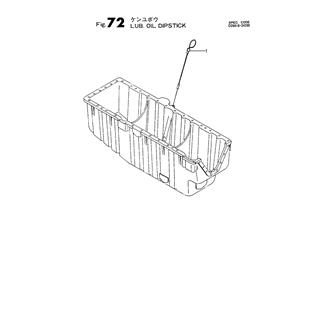

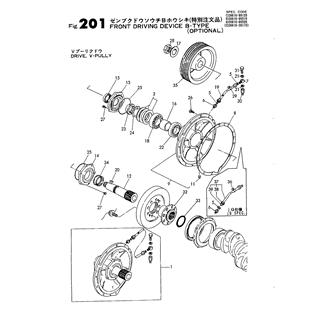

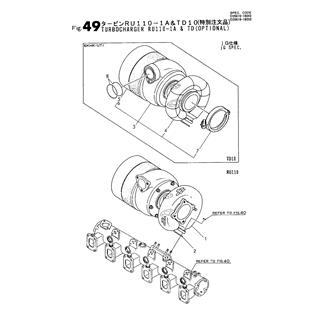

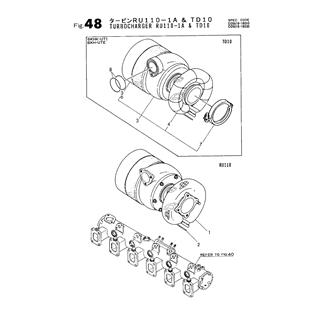

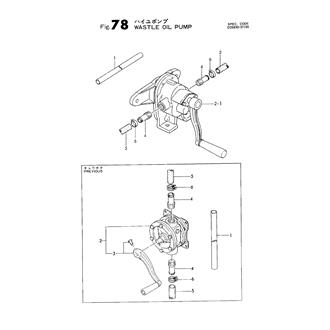

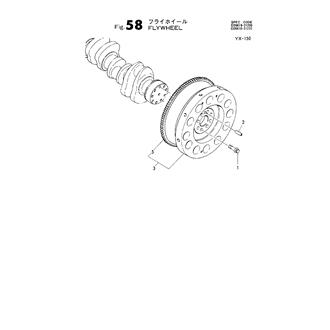

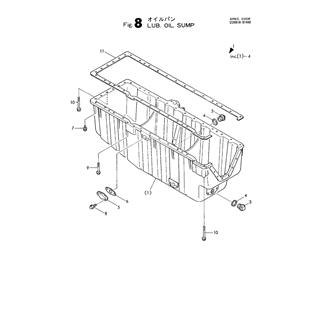

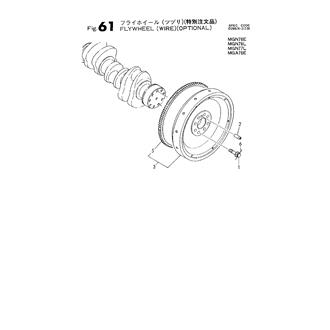

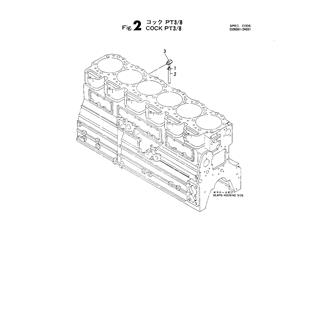

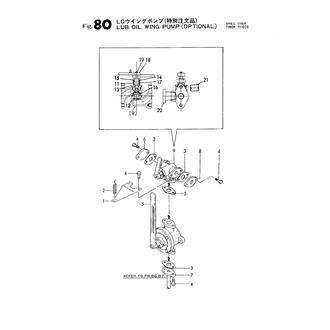

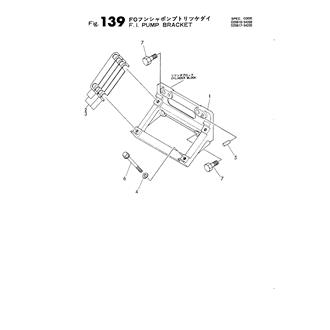

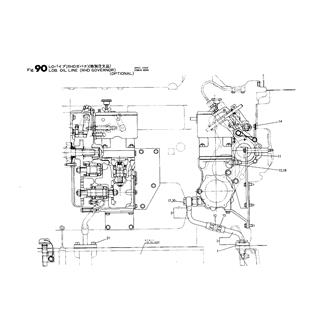

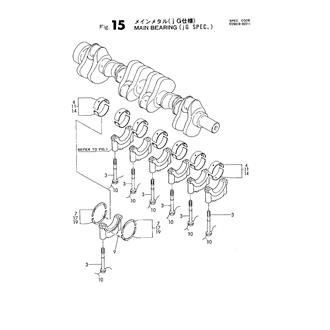

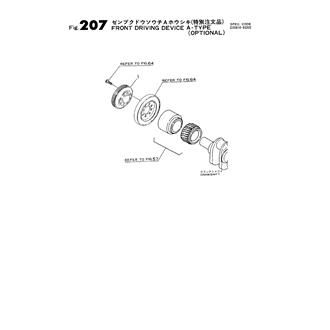

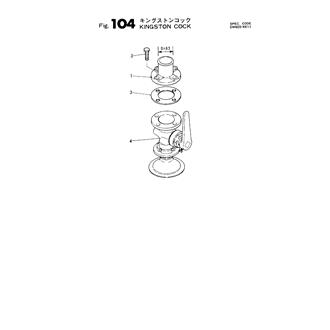

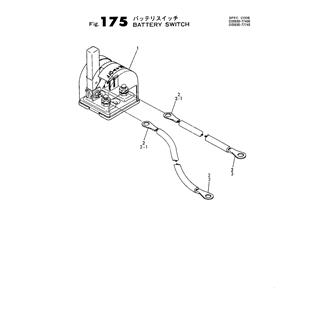

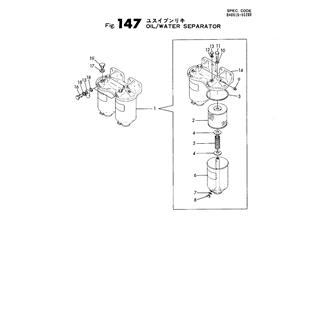

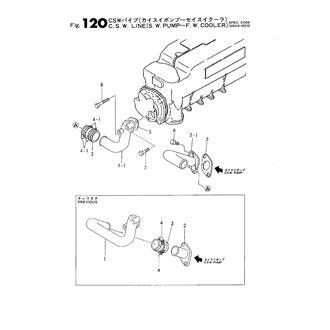

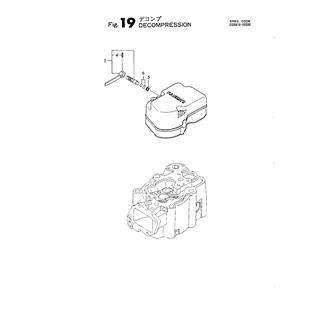

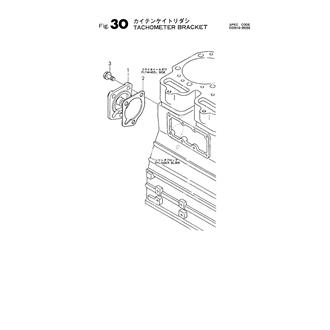

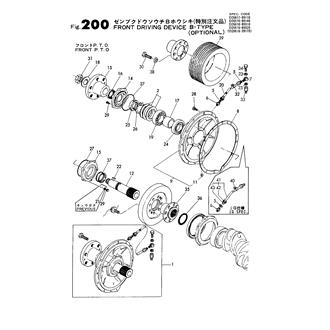

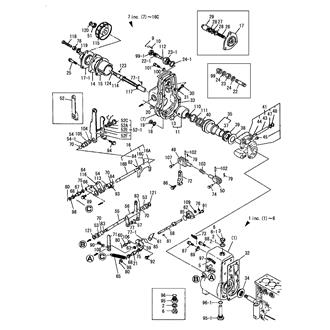

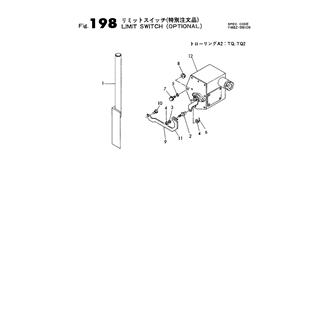

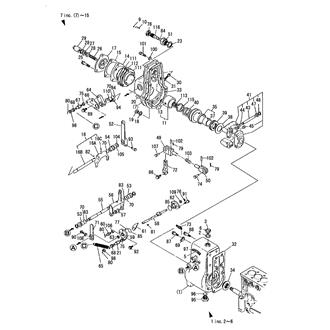

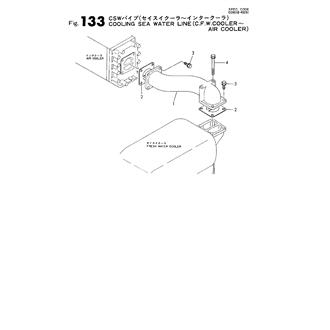

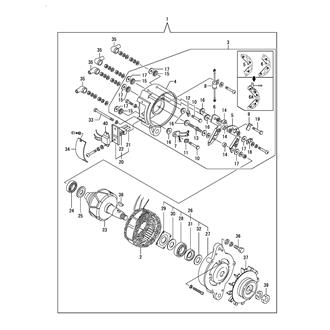

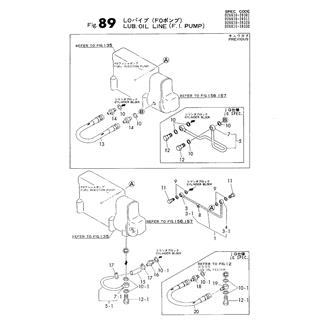

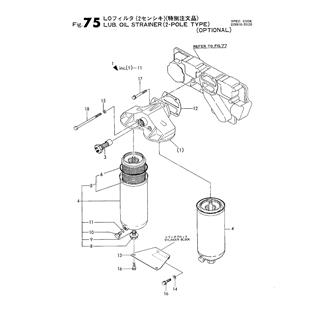

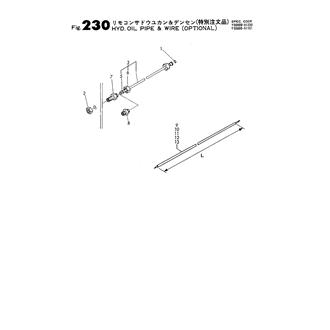

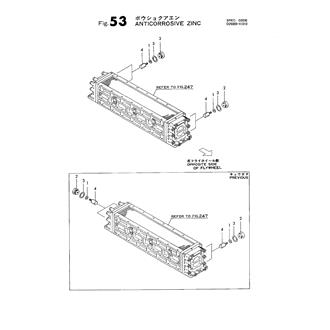

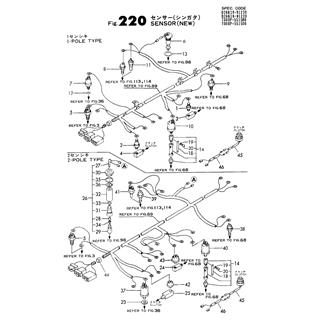

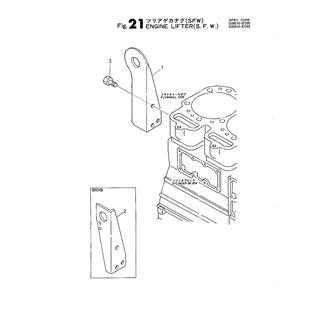

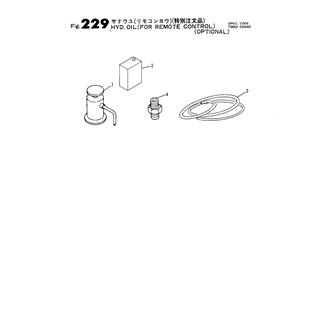

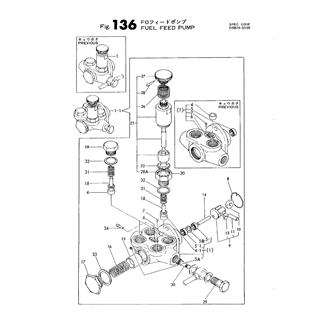

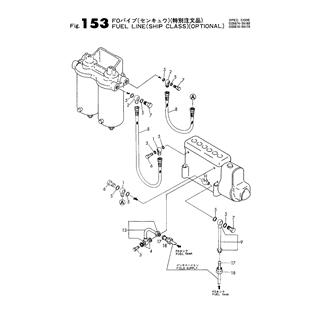

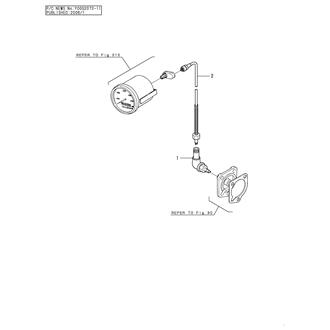

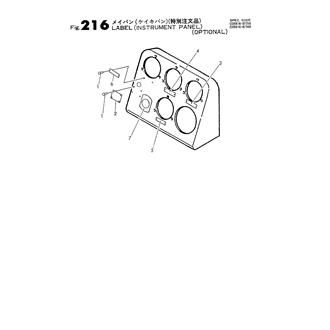

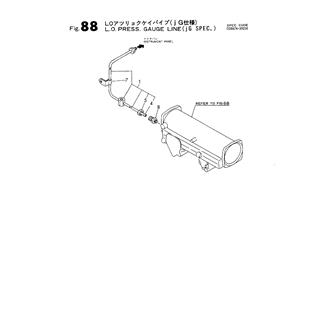

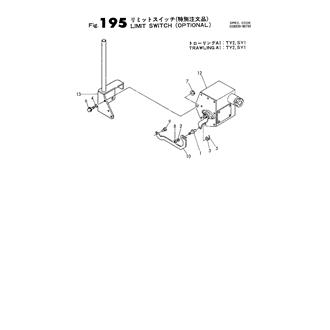

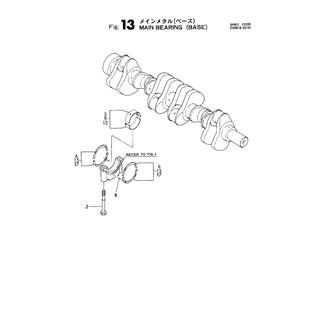

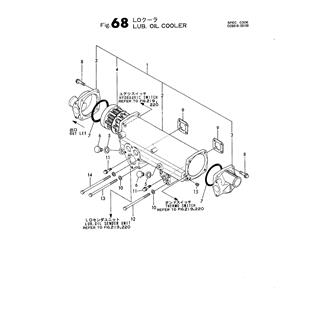

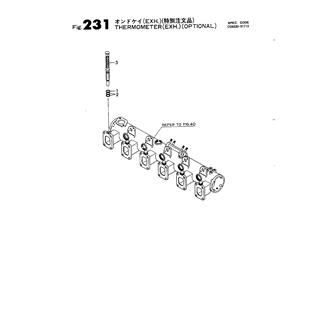

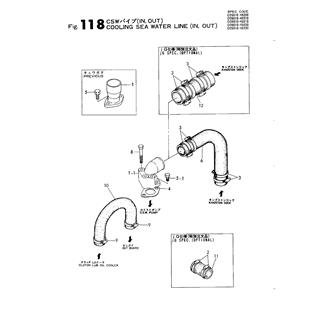

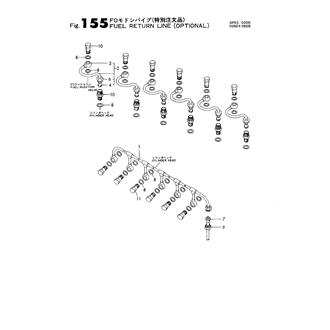

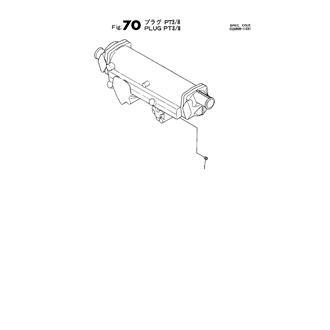

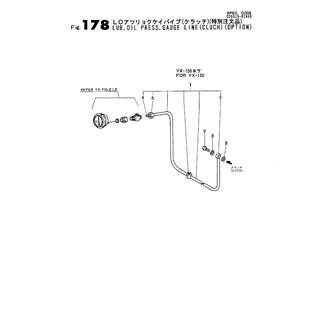

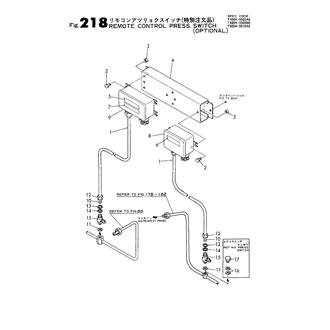

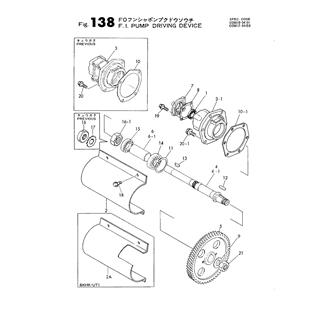

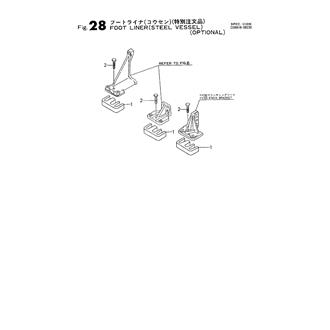

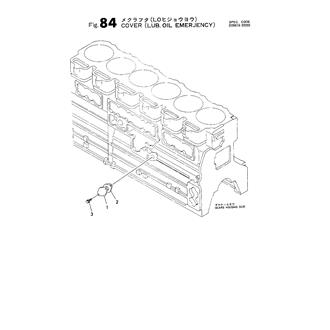

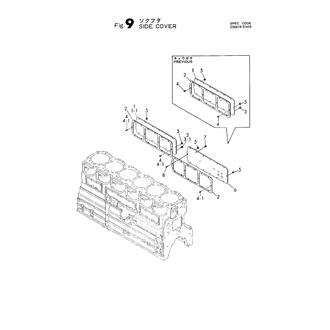

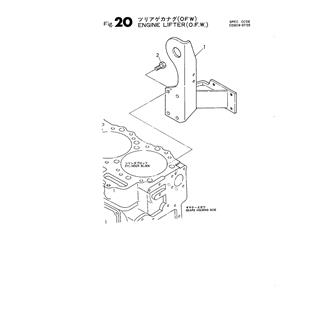

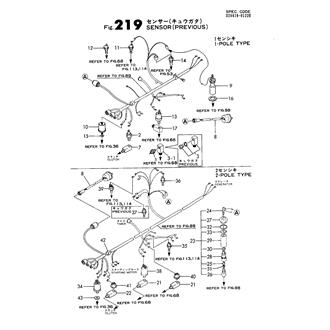

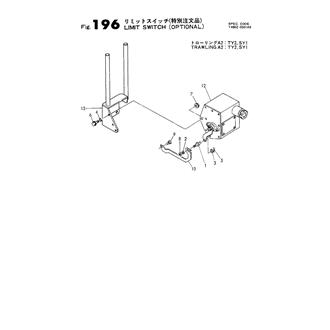

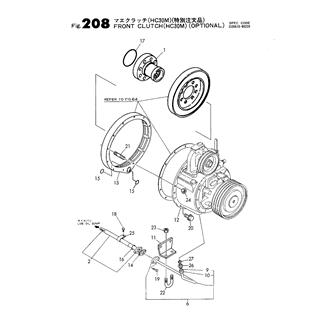

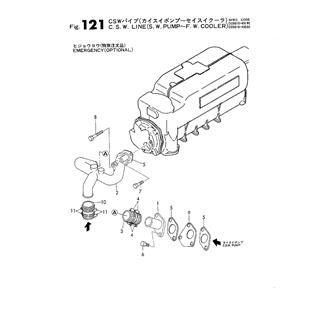

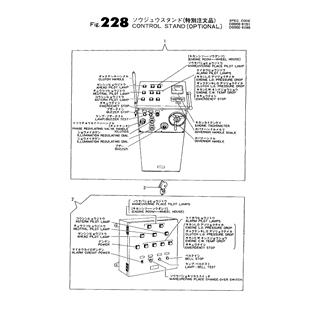

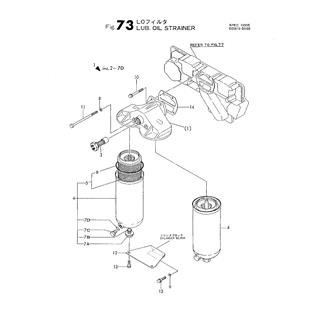

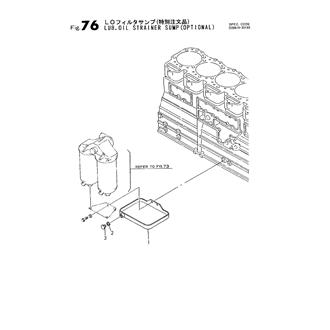

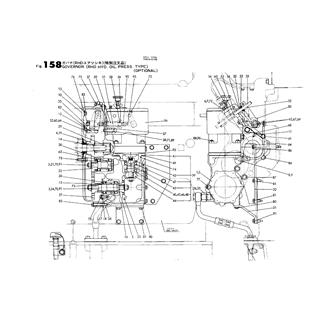

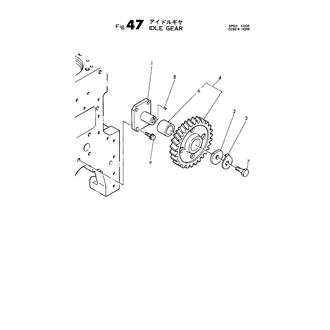

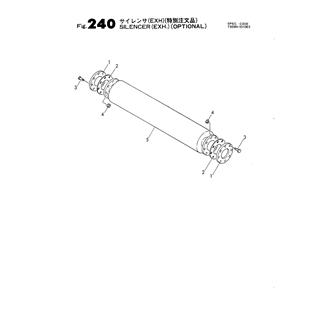

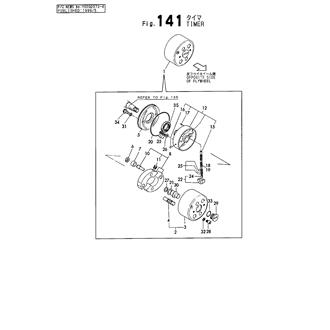

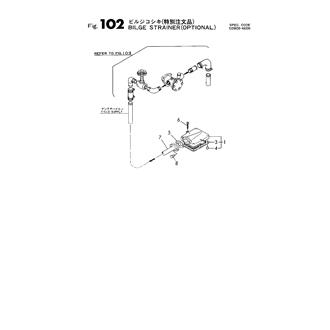

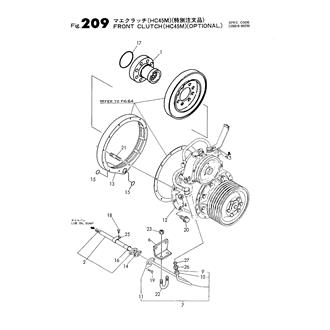

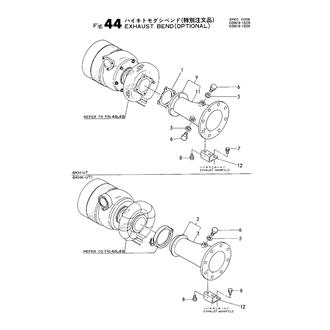

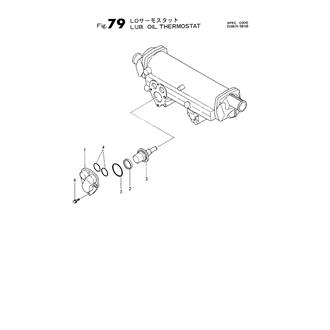

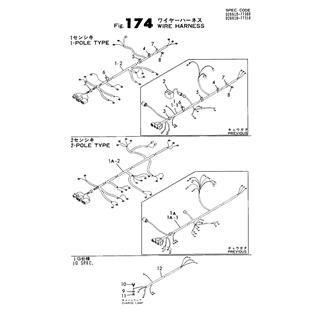

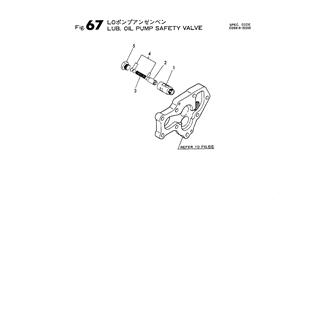

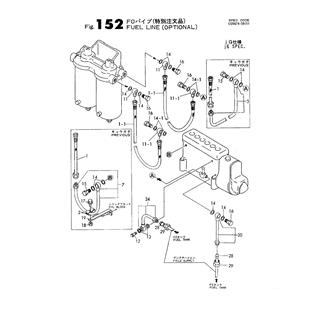

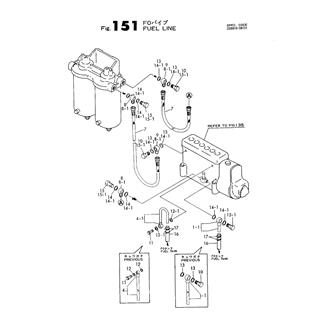

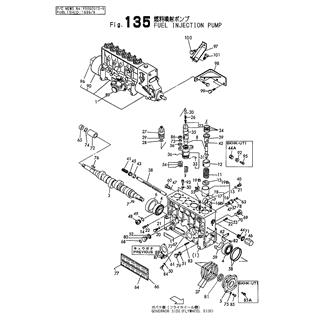

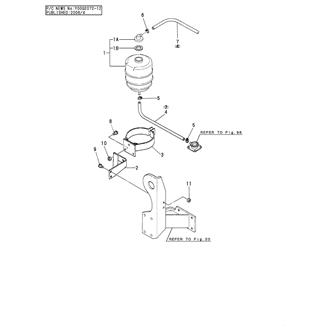

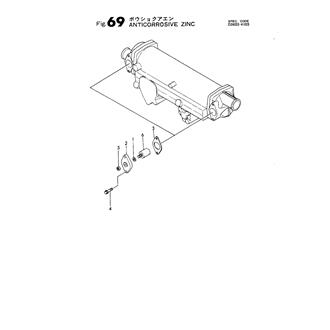

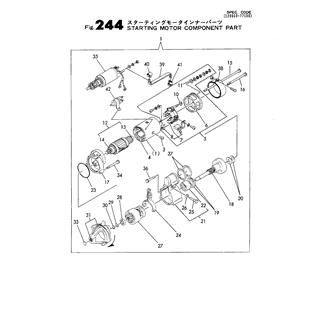

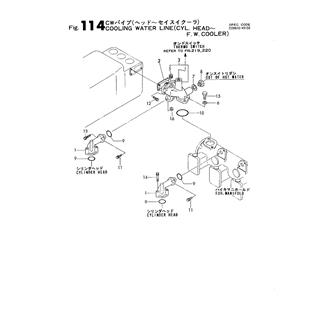

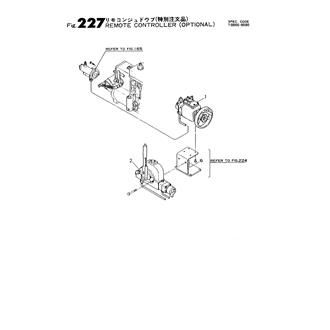

6KHK-UT1 Large Grid View Table View FIG 1. CYLINDER BLOCK 0CG10-M20702_0001_01 Information FIG 10. SIDE COVER (OPTIONAL) 0CG10-M20702_0010_01 Information FIG 100. ELECTRIC BILGE PUMP 0CG10-M20702_0100_01 Information FIG 101. BILGE PUMP (OPTIONAL) 0CG10-M20702_0101_01 Information FIG 102. BILGE STRAINER (OPTIONAL) 0CG10-M20702_0102_01 Information FIG 103. BILGE PUMP PIPE (OPTIONAL) 0CG10-M20702_0103_01 Information FIG 104. KINGSTON COCK 0CG10-M20702_0104_01 Information FIG 105. KINGSTON VALVE (50A FLANGE)(OPTIONAL) 0CG10-M20702_0105_01 Information FIG 106. KINGSTON VALVE (50A JOINT)(OPTIONAL) 0CG10-M20702_0106_01 Information FIG 107. KINGSTON VALVE (STEEL VESSEL)(OPTIONAL) 0CG10-M20702_0107_01 Information FIG 108. C.S.W.STRAINER (TWIN-TIPE 50A)(OPTIONAL) 0CG10-M20702_0108_01 Information FIG 109. C.S.W.STRAINER (TWIN-TYPE 50A)(OPTIONAL) 0CG10-M20702_0109_01 Information FIG 11. LUB. OIL FEEDER 0CG10-M20702_0011_01 Information FIG 110. C.S.W.STRAINER (SINGLE-TYPE)(OPTIONAL) 0CG10-M20702_0110_01 Information FIG 111. COOLING FRESH WATER THERMOSTAT 0CG10-M20702_0111_01 Information FIG 112. COOLING WATER LINE(PUMP-CYL.) 0CG10-M20702_0112_01 Information FIG 113. C.W.LINE (CYL.HEAD-F.W.COOLER) 0CG10-M20702_0113_01 Information FIG 114. C.W.LINE (CYL.HEAD-F.W.COOLER) 0CG10-M20702_0114_01 Information FIG 115. C.W.LINE (F.W.COOLER-F.W.PUMP) 0CG10-M20702_0115_01 Information FIG 116. COVER 0CG10-M20702_0116_01 Information FIG 117. COVER (OPTIONAL) 0CG10-M20702_0117_01 Information FIG 118. COOLING SEA WATER LINE(IN.OUT) 0CG10-M20702_0118_01 Information FIG 119. C.S.W.LINE(IN,OUT)(JG-PREVIOUS 0CG10-M20702_0119_01 Information FIG 12. LUB. OIL FEEDER (OPTIONAL) 0CG10-M20702_0012_01 Information FIG 120. C.S.W.LINE(S.W.PUMP-F.W.COOLER 0CG10-M20702_0120_01 Information FIG 121. C.S.W.LINE(S.W.PUMP-F.W.COOLER 0CG10-M20702_0121_01 Information FIG 122. C.S.W.LINE(S.W.PUMP-F.W.COOLER 0CG10-M20702_0122_01 Information FIG 123. C.S.W.LINE(S.W.PUMP-F.W.COOLER 0CG10-M20702_0123_01 Information FIG 124. C.S.W.LINE(F.W.C.- L.O.COOLER)(OPTIONAL) 0CG10-M20702_0124_01 Information FIG 125. C.S.W.LINE(L.O.C. - H.O.C.) 0CG10-M20702_0125_01 Information FIG 126. C.S.W.LINE(L.O.C. - H.O.C.)(OPTIONAL) 0CG10-M20702_0126_01 Information FIG 127. C.S.W.LINE(L.O.C. - H.O.C.)(OPTIONAL) 0CG10-M20702_0127_01 Information FIG 128. C.S.W.LINE(L.O.C. - H.O.C.)(OPTIONAL) 0CG10-M20702_0128_01 Information FIG 129. C.S.W.LINE(L.O.C - H.O.C.)(OPTIONAL) 0CG10-M20702_0129_01 Information FIG 13. MAIN BEARING (BASE) 0CG10-M20702_0013_01 Information FIG 130. C.S.W.LINE(L.O.C. - H.O.C)(OPTIONAL) 0CG10-M20702_0130_01 Information FIG 131. C.S.W.LINE(L.O.C. - H.O.C.)(OPTIONAL) 0CG10-M20702_0131_01 Information FIG 132. C.S.W.LINE(L.O.C.- H.O.C.)(OPTIONAL) 0CG10-M20702_0132_01 Information FIG 133. C.S.W.LINE(F.W.C. -AIR C.) 0CG10-M20702_0133_01 Information FIG 134. C.F.W.PRESS.GAUGE LINE (OPTIONAL) 0CG10-M20702_0134_01 Information FIG 135. FUEL INJECTION PUMP 0CG10-M20702_0135_01 Information FIG 136. FUEL FEED PUMP 0CG10-M20702_0136_01 Information FIG 137. FUEL INJECTION VALVE 0CG10-M20702_0137_01 Information FIG 138. F. I. PUMP DRIVING DEVICE 0CG10-M20702_0138_01 Information FIG 139. F. I. PUMP BRACKET 0CG10-M20702_0139_01 Information FIG 14. MAIN BEARING 0CG10-M20702_0014_01 Information FIG 141. TIMER 0CG10-M20702_0141_01 Information FIG 142. CUPLING 0CG10-M20702_0142_01 Information FIG 143. FUEL FILTER 0CG10-M20702_0143_01 Information FIG 144. FUEL STRAINER (OPTIONAL) 0CG10-M20702_0144_01 Information FIG 145. SEPARATOR (GF-V-20)(OPTIONAL) 0CG10-M20702_0145_01 Information FIG 146. SEPARATOR (GF-4TW)(OPTIONAL) 0CG10-M20702_0146_01 Information FIG 147. OIL/WATER SEPARATOR 0CG10-M20702_0147_01 Information FIG 148. OIL/WATER SEPARATOR (OPTIONAL) 0CG10-M20702_0148_01 Information FIG 149. FUEL INJECTION LINE 0CG10-M20702_0149_01 Information FIG 15. MAIN BEARING (JG SPEC.) 0CG10-M20702_0015_01 Information FIG 151. FUEL LINE 0CG10-M20702_0151_01 Information FIG 152. FUEL LINE(OPTIONAL) 0CG10-M20702_0152_01 Information FIG 153. FUEL LINE (SHIP CLASS)(OPTION) 0CG10-M20702_0153_01 Information FIG 154. FUEL RETURN LINE 0CG10-M20702_0154_01 Information FIG 155. FUEL RETURN LINE (OPTIONAL) 0CG10-M20702_0155_01 Information FIG 156. GOVERNOR(MECHANICAL TYPE) 0CG10-M20702_0156_01 Information FIG 157. GOVERNOR(MECHANICAL TYPE) 0CG10-M20702_0157_01 Information FIG 158. GOVERNOR(HYD.OIL PRESS. TYPE) 0CG10-M20702_0158_01 Information FIG 159. FUEL OIL CUT(MECHANICAL GOV.) 0CG10-M20702_0159_01 Information FIG 16. CAMSHAFT BEARING 0CG10-M20702_0016_01 Information FIG 160. FUEL OIL CUT(HYD.OIL PRESS.GOV 0CG10-M20702_0160_01 Information FIG 161. CABLE SUPPORT 0CG10-M20702_0161_01 Information FIG 162. CABLE SUPPORT (OPTIONAL) 0CG10-M20702_0162_01 Information FIG 163. ENGINE STOP 0CG10-M20702_0163_01 Information FIG 164. LEVER (HYD.OIL PRESS. GOVENOR) 0CG10-M20702_0164_01 Information FIG 165. HYD.OIL PRESS.REMOTE CONTROLER 0CG10-M20702_0165_01 Information FIG 166. REMOTE CONTOROL HEAD 0CG10-M20702_0166_01 Information FIG 167. STARTING MOTOR(1-POLE TYPE) 0CG10-M20702_0167_01 Information FIG 168. STARTING MOTOR(2-POLE TYPE) 0CG10-M20702_0168_01 Information FIG 169. GENERATOR DRIVING 0CG10-M20702_0169_01 Information FIG 17. BREATHER PIPE 0CG10-M20702_0017_01 Information FIG 170. GENERATOR (0.6KW) 0CG10-M20702_0170_01 Information FIG 171. GENERATOR (1KW) 0CG10-M20702_0171_01 Information FIG 172. COVER (GENERATOR)(OPTIONAL) 0CG10-M20702_0172_01 Information FIG 173. RELAY HARNESS (OPTION) 0CG10-M20702_0173_01 Information FIG 174. WIRE HARNESS 0CG10-M20702_0174_01 Information FIG 175. BATTERY SWITCH 0CG10-M20702_0175_01 Information FIG 176. CLUTCH 0CG10-M20702_0176_01 Information FIG 177. L.O.LINE(WING PUMP)(OPTIONAL) 0CG10-M20702_0177_01 Information FIG 178. L.O.GAUGE PRESS.LINE (CLUTCH) 0CG10-M20702_0178_01 Information FIG 179. L.O.GAUGE PRESS.LINE (CLUTCH) 0CG10-M20702_0179_01 Information FIG 18. BREATHER 0CG10-M20702_0018_01 Information FIG 180. L.O.GAUGE PRESS.LINE (CLUTCH) 0CG10-M20702_0180_01 Information FIG 181. L.O.GAUGE PRESS.LINE (CLUTCH) 0CG10-M20702_0181_01 Information FIG 182. L.O.GAUGE PRESS.LINE (CLUTCH) 0CG10-M20702_0182_01 Information FIG 183. SET BOLT (CLUTCH)(OPTIONAL) 0CG10-M20702_0183_01 Information FIG 184. CLUTCH FOOT (MGN76L)(OPTIONAL) 0CG10-M20702_0184_01 Information FIG 185. CLUTCH FOOT (MGN76E)(OPTIONAL) 0CG10-M20702_0185_01 Information FIG 186. CLUTCH FOOT (MGN56B)(OPTIONAL) 0CG10-M20702_0186_01 Information FIG 187. CLUTCH FOOT (MGN77L)(OPTIONAL) 0CG10-M20702_0187_01 Information FIG 188. BALL JOINT(TROLLING GOVERNOR) 0CG10-M20702_0188_01 Information FIG 189. CLUTCH CABLE SUPPORT (OPTIONAL) 0CG10-M20702_0189_01 Information FIG 19. DECOMPRESSION 0CG10-M20702_0019_01 Information FIG 190. CLUTCH CABLE SUPPORT (OPTIONAL) 0CG10-M20702_0190_01 Information FIG 191. CLUTCH CABLE SUPPORT (OPTIONAL) 0CG10-M20702_0191_01 Information FIG 192. CLUTCH CABLE SUPPORT (OPTIONAL) 0CG10-M20702_0192_01 Information FIG 193. TROLLING VALVE CABLE SUPPORT 0CG10-M20702_0193_01 Information FIG 194. CLUTCH RECEIVER (OPTIONAL) 0CG10-M20702_0194_01 Information FIG 195. LIMIT SWITCH (OPTIONAL) 0CG10-M20702_0195_01 Information FIG 196. LIMIT SWITCH (OPTIONAL) 0CG10-M20702_0196_01 Information FIG 197. LIMIT SWITCH (OPTIONAL) 0CG10-M20702_0197_01 Information FIG 198. LIMIT SWITCH (OPTIONAL) 0CG10-M20702_0198_01 Information FIG 199. LIMIT SWITCH (OPTIONAL) 0CG10-M20702_0199_01 Information FIG 2. COCK PT3/8 0CG10-M20702_0002_01 Information FIG 20. ENGINE LIFTER (O.F.W.) 0CG10-M20702_0020_01 Information FIG 200. FRONT DRIVING DEVICE B-TYPE 0CG10-M20702_0200_01 Information FIG 201. FRONT DRIVING DEVICE B-TYPE 0CG10-M20702_0201_01 Information FIG 202. FRONT DRIVING DEVICE B-TYPE 0CG10-M20702_0202_01 Information FIG 203. FRONT DRIVING DEVICE BF-TYPE 0CG10-M20702_0203_01 Information FIG 204. FRONT DRIVING DEVICE D-TYPE 0CG10-M20702_0204_01 Information FIG 205. FRONT DRIVING DEVICE D-TYPE 0CG10-M20702_0205_01 Information FIG 206. FRONT DRIVING DEVICE D-TYPE 0CG10-M20702_0206_01 Information FIG 207. FRONT DRIVING DEVICE A-TYPE 0CG10-M20702_0207_01 Information FIG 208. FRONT CLUTCH (HC30M)(OPTIONAL) 0CG10-M20702_0208_01 Information FIG 209. FRONT CLUTCH (HC45M)(OPTIONAL) 0CG10-M20702_0209_01 Information FIG 21. ENGINE LIFTER (S.F.W.) 0CG10-M20702_0021_01 Information FIG 210. INSTRUMENT PANEL(PREVIOUS) 0CG10-M20702_0210_01 Information FIG 212. INSTRUMENT PANEL (OPTIONAL) 0CG10-M20702_0212_01 Information FIG 213. INSTRUMENT PANEL (OPTIONAL) 0CG10-M20702_0213_01 Information FIG 214. INSTRUMENT PANEL (OPTIONAL) 0CG10-M20702_0214_01 Information FIG 215. FLEXIBLE JOINT(TACHOMETER/OPTIONAL) 0CG10-M20702_0215_01 Information FIG 216. LABEL (INSTRUMENT PANEL) 0CG10-M20702_0216_01 Information FIG 217. SUC.PRESS.GAUGE LINE(OPTIONAL) 0CG10-M20702_0217_01 Information FIG 218. REMOTE CONTROL PRESS.SWITCH 0CG10-M20702_0218_01 Information FIG 219. SENCOR(PREVIOUS)(OPTION) 0CG10-M20702_0219_01 Information FIG 22. LABEL 0CG10-M20702_0022_01 Information FIG 220. SENSOR(NEW)(OPTION) 0CG10-M20702_0220_01 Information FIG 221. DAMPER (L.O.PRESS.SWITCH) 0CG10-M20702_0221_01 Information FIG 222. REMOTE CONTROL PANEL(OPTIONAL) 0CG10-M20702_0222_01 Information FIG 223. ELECTRIC SPEED METER (OPTIONAL) 0CG10-M20702_0223_01 Information FIG 224. REMOTE CONTROLLER (OPTIONAL) 0CG10-M20702_0224_01 Information FIG 225. REMOTE CONTROLLER (OPTIONAL) 0CG10-M20702_0225_01 Information FIG 226. REMOTE CONTROLLER (OPTIONAL) 0CG10-M20702_0226_01 Information FIG 227. REMOTE CONTROLLER (OPTIONAL) 0CG10-M20702_0227_01 Information FIG 228. CONTROL STAND (OPTIONAL) 0CG10-M20702_0228_01 Information FIG 229. HYD. OIL (FOR REMOTE CONTROL) 0CG10-M20702_0229_01 Information FIG 23. ENGINE BED 0CG10-M20702_0023_01 Information FIG 230. HYD. OIL PIPE & WIRE (OPTIONAL) 0CG10-M20702_0230_01 Information FIG 231. THERMOMETER (EXH.)(OPTIONAL) 0CG10-M20702_0231_01 Information FIG 232. THERMOMETER (L.O.,C.W.)(OPTIONAL) 0CG10-M20702_0232_01 Information FIG 233. THERMOMETER (EXH.)(OPTIONAL) 0CG10-M20702_0233_01 Information FIG 234. TOOL 0CG10-M20702_0234_01 Information FIG 235. SPECIAL TOOL 0CG10-M20702_0235_01 Information FIG 236. SET BOLT(WOODEN VESSEL) 0CG10-M20702_0236_01 Information FIG 237. SET BOLT (STEEL VESSEL)(OPTIONAL) 0CG10-M20702_0237_01 Information FIG 238. SET BOLT (STEEL VESSEL)(OPTIONAL) 0CG10-M20702_0238_01 Information FIG 239. EXHAUST BELLOWS JOINT(OPTIONAL) 0CG10-M20702_0239_01 Information FIG 24. ENGINE BED (OPTIONAL) 0CG10-M20702_0024_01 Information FIG 240. SILENCER (EXH.)(OPTIONAL) 0CG10-M20702_0240_01 Information FIG 243. TURBOCHARGER COMPONENT PART 0CG10-M20702_0243_01 Information FIG 244. STARTING MOTOR CONPONENT PART 0CG10-M20702_0244_01 Information FIG 245. STARTING MOTOR COMPONENT PART (OPTIONAL) 0CG10-M20702_0245_01 Information FIG 246. GENERATOR COMPONENT PART(0.6KW) 0CG10-M20702_0246_01 Information FIG 247. AIR COOLER COMPONENT PART 0CG10-M20702_0247_01 Information FIG 25. ENGINE BED (OPTIONAL) 0CG10-M20702_0025_01 Information FIG 251. INSTRUMENT PANEL(NEW) 0CG10-M20702_0251_01 Information FIG 26. ENGINE BED (OPTIONAL) 0CG10-M20702_0026_01 Information FIG 27. ENGINE BED (OPTIONAL) 0CG10-M20702_0027_01 Information FIG 28. FOOT LINER (STEEL VESSEL) 0CG10-M20702_0028_01 Information FIG 29. FOOT LINER (STEEL VESSEL) 0CG10-M20702_0029_01 Information FIG 3. FLYWHEEL HOUSING 0CG10-M20702_0003_01 Information FIG 30. TACHOMETER BRACKET 0CG10-M20702_0030_01 Information FIG 31. ELECTRIC TACHOMETER BRACKET 0CG10-M20702_0031_01 Information FIG 32. CYLINDER HEAD 0CG10-M20702_0032_01 Information FIG 33. FUEL INJECTION VALVE RETAINER 0CG10-M20702_0033_01 Information FIG 34. SUC./EXH. ROCKER ARM 0CG10-M20702_0034_01 Information FIG 35. BONNET 0CG10-M20702_0035_01 Information FIG 36. SUCTION MANIFOLD 0CG10-M20702_0036_01 Information FIG 39. COCK PT3/8 0CG10-M20702_0039_01 Information FIG 4. CYLINDER LINER 0CG10-M20702_0004_01 Information FIG 40. EXHAUST MANIFOLD 0CG10-M20702_0040_01 Information FIG 41. EXHAUST BEND 0CG10-M20702_0041_01 Information FIG 42. EXHAUST BELLOWS 6B 0CG10-M20702_0042_01 Information FIG 43. EXHAUST PIPE 0CG10-M20702_0043_01 Information FIG 44. EXHAUST BEND (OPTIONAL) 0CG10-M20702_0044_01 Information FIG 45. CAMSHAFT 0CG10-M20702_0045_01 Information FIG 46. VALVE WORKING DEVICE 0CG10-M20702_0046_01 Information FIG 47. IDLE GEAR 0CG10-M20702_0047_01 Information FIG 48. TURBO CHARGE RU110-1A & TD10 0CG10-M20702_0048_01 Information FIG 49. TURBO CHARGE RU110-1A & TD10(OPTIONAL) 0CG10-M20702_0049_01 Information FIG 5. GEAR HOUSING 0CG10-M20702_0005_01 Information FIG 51. AIR COOLER 0CG10-M20702_0051_01 Information FIG 52. AIR COOLER (OPTIONAL) 0CG10-M20702_0052_01 Information FIG 53. ANTICORROSIVE ZINC 0CG10-M20702_0053_01 Information FIG 54. LABEL (YANMAR) 0CG10-M20702_0054_01 Information FIG 55. AIR DUCT 0CG10-M20702_0055_01 Information FIG 56. AIR DUCT (RU111)(OPTIONAL) 0CG10-M20702_0056_01 Information FIG 57. CRANKSHAFT 0CG10-M20702_0057_01 Information FIG 58. FLYWHEEL 0CG10-M20702_0058_01 Information FIG 59. FLYWHEEL (WIRE)(OPTIONAL) 0CG10-M20702_0059_01 Information FIG 6. ENGINE BRACKET 0CG10-M20702_0006_01 Information FIG 60. FLYWHEEL (OPTIONAL) 0CG10-M20702_0060_01 Information FIG 61. FLYWHEEL (WIRE)(OPTIONAL) 0CG10-M20702_0061_01 Information FIG 62. PISTON 0CG10-M20702_0062_01 Information FIG 63. CONNECTING ROD 0CG10-M20702_0063_01 Information FIG 64. DAMPER 0CG10-M20702_0064_01 Information FIG 65. COVER (DAMPER)(OPTIONAL) 0CG10-M20702_0065_01 Information FIG 66. LUB. OIL PUMP 0CG10-M20702_0066_01 Information FIG 67. LUB. OIL PUMP SAFETY VALVE 0CG10-M20702_0067_01 Information FIG 68. LUB. OIL COOLER 0CG10-M20702_0068_01 Information FIG 69. ANTICORROSIVE ZINC 0CG10-M20702_0069_01 Information FIG 7. ENGINE BRACKET (OPTIONAL) 0CG10-M20702_0007_01 Information FIG 70. PLUG PT3/8 0CG10-M20702_0070_01 Information FIG 71. LUB.OIL PRESS.REGULATING VALVE 0CG10-M20702_0071_01 Information FIG 72. LUB. OIL DIPSTICK 0CG10-M20702_0072_01 Information FIG 73. LUB. OIL STRAINER 0CG10-M20702_0073_01 Information FIG 74. LUB. OIL STRAINER (OPTIONAL) 0CG10-M20702_0074_01 Information FIG 75. LUB. OIL STRAINER(2-POLE TYPE) 0CG10-M20702_0075_01 Information FIG 76. LUB. OIL STRAINER SUMP (OPTIONAL) 0CG10-M20702_0076_01 Information FIG 77. LUB. OIL CASE 0CG10-M20702_0077_01 Information FIG 78. WASTLE OIL PUMP 0CG10-M20702_0078_01 Information FIG 79. LUB. OIL THERMOSTAT 0CG10-M20702_0079_01 Information FIG 8. LUB. OIL PUMP 0CG10-M20702_0008_01 Information FIG 80. LUB. OIL WING PUMP (OPTIONAL) 0CG10-M20702_0080_01 Information FIG 81. LUB. OIL SUCTION PIPE 0CG10-M20702_0081_01 Information FIG 82. LUB. OIL LINE (TURBO) 0CG10-M20702_0082_01 Information FIG 83. LUB. OIL LINE (TURBO)(OPTIONAL) 0CG10-M20702_0083_01 Information FIG 84. COVER (LUB. OIL EMERJENCY) 0CG10-M20702_0084_01 Information FIG 85. COVER (LUB. OIL EMERJENCY) 0CG10-M20702_0085_01 Information FIG 86. L.O.LINE (WING PUMP)(OPTIONAL) 0CG10-M20702_0086_01 Information FIG 87. L.O.LINE (RESERVE PUMP)(OPTIONAL) 0CG10-M20702_0087_01 Information FIG 88. L.O. PRESS.GAUGE LINE(JG SPEC.) 0CG10-M20702_0088_01 Information FIG 89. LUB. OIL LINE (F.I.PUMP) 0CG10-M20702_0089_01 Information FIG 9. SIDE COVER 0CG10-M20702_0009_01 Information FIG 90. L.O.LINE (RHD GOVERNOR)(OPTIONAL) 0CG10-M20702_0090_01 Information FIG 91. L.O.LINE (RHD GOVERNOR)(OPTIONAL) 0CG10-M20702_0091_01 Information FIG 92. L.O.LINE (WASTLE OIL)(OPTIONAL) 0CG10-M20702_0092_01 Information FIG 93. L.O. SEMI-DRY SUMP (OPTIONAL) 0CG10-M20702_0093_01 Information FIG 95. PISTON JET 0CG10-M20702_0095_01 Information FIG 96. COOLING PUMP(SEA WATER) 0CG10-M20702_0096_01 Information FIG 97. COOLING FRESH WATER PUMP 0CG10-M20702_0097_01 Information FIG 98. COOLING FRESH WATER COOLER 0CG10-M20702_0098_01 Information FIG 99. SUB-TANK 0CG10-M20702_0099_01 Information
