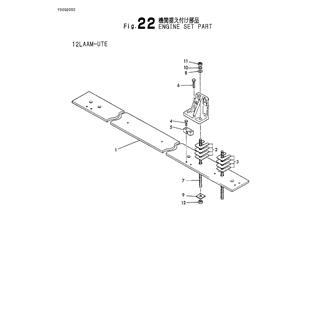

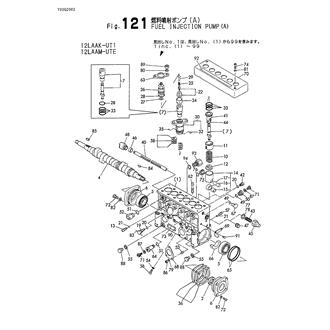

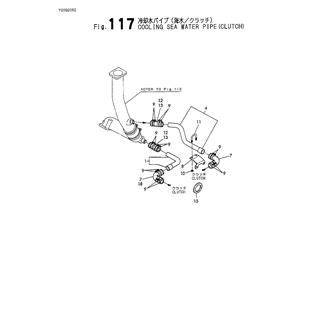

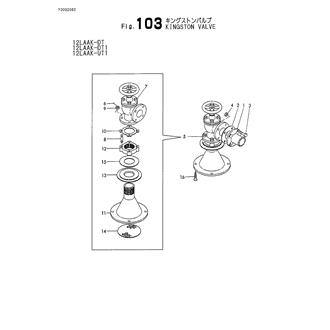

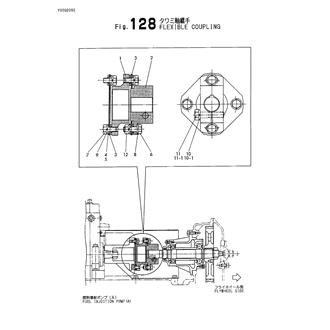

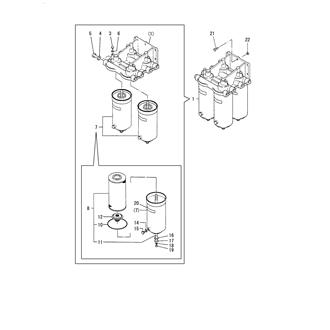

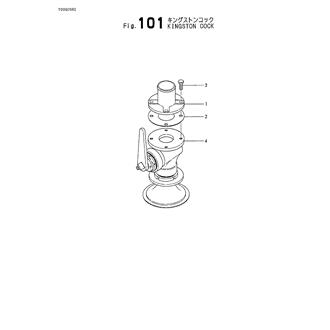

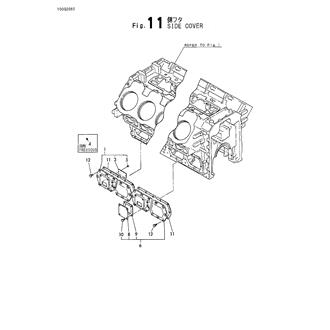

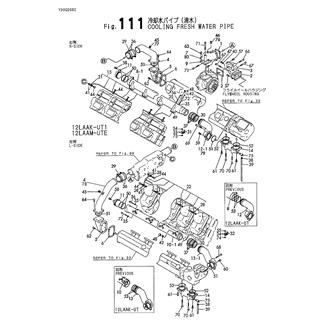

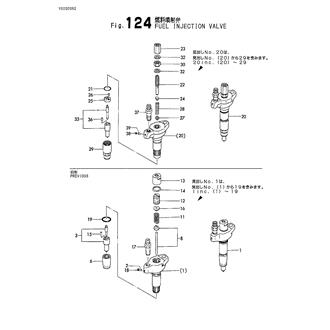

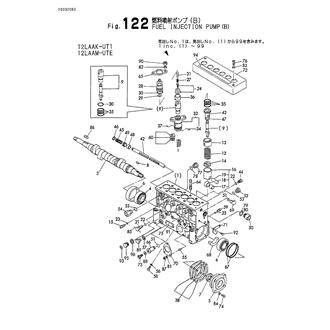

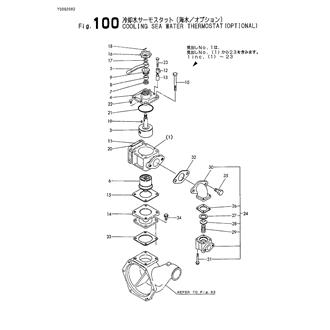

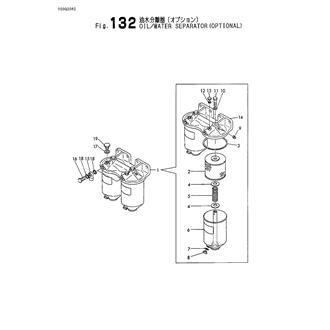

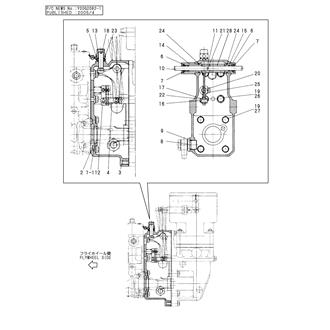

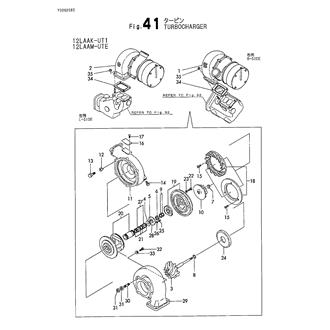

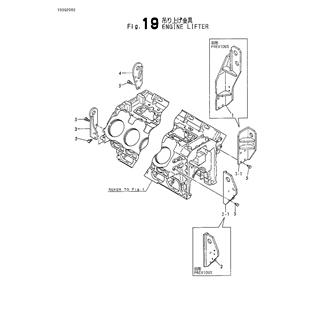

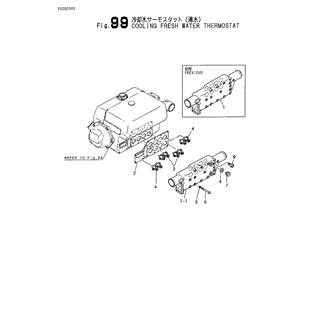

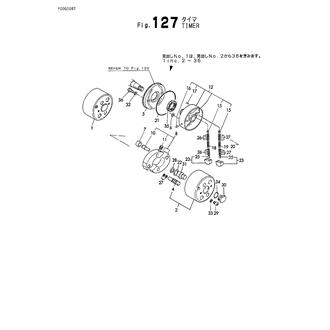

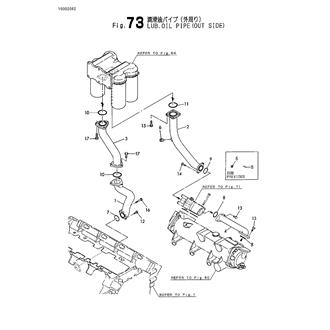

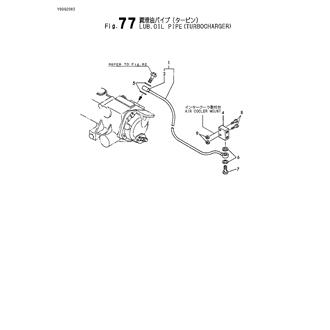

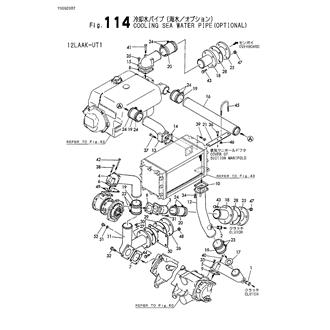

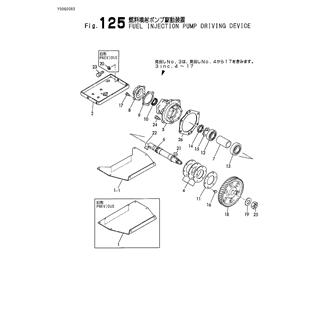

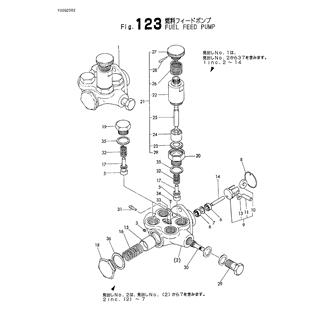

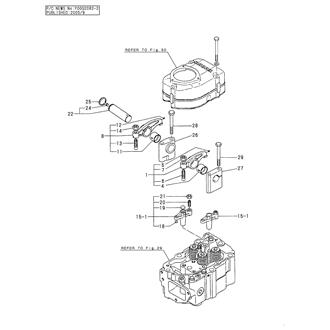

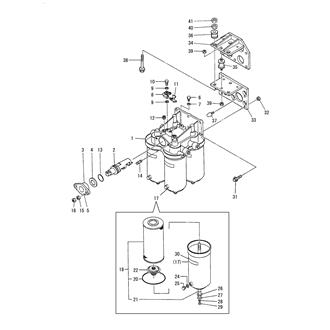

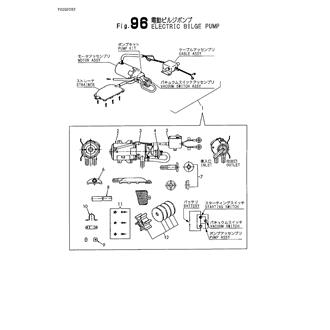

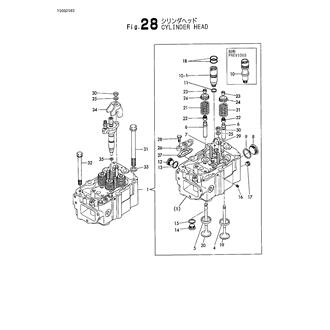

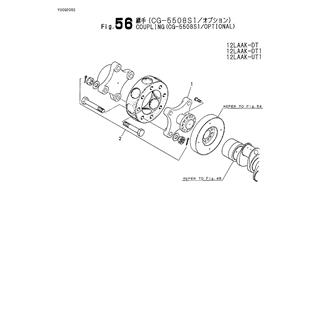

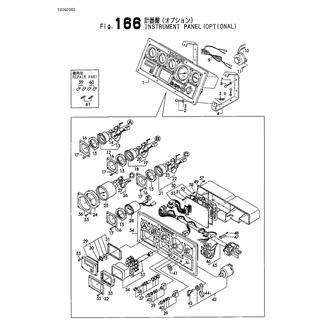

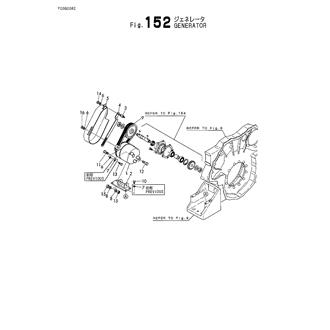

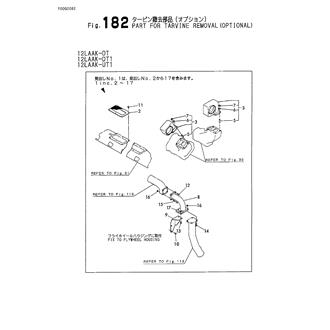

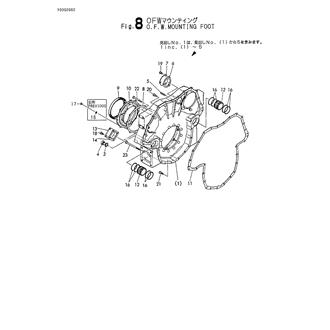

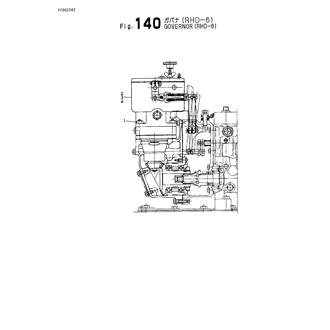

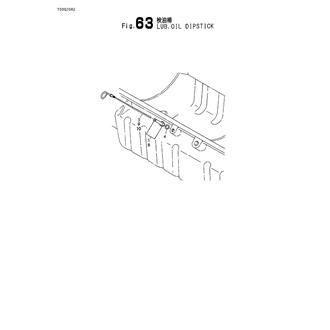

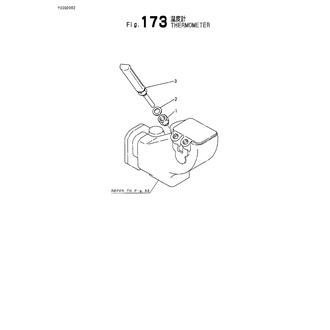

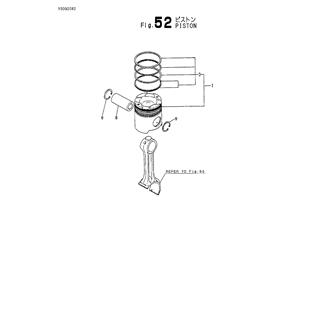

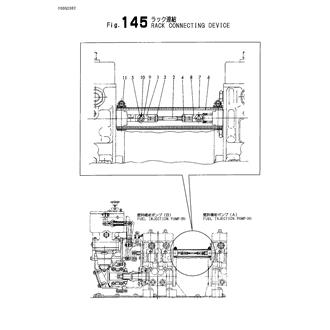

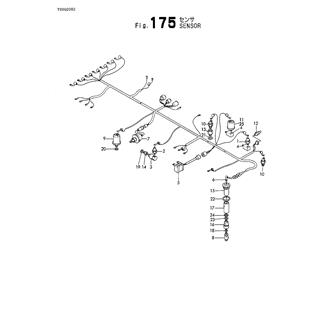

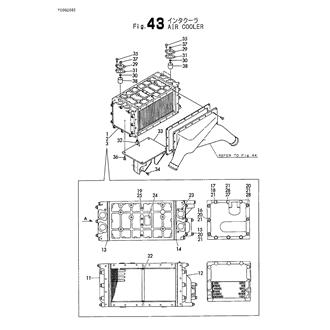

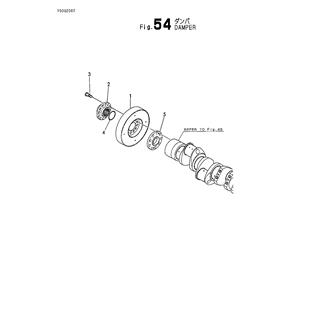

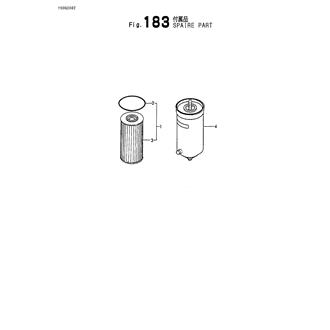

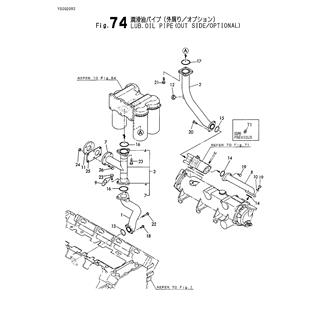

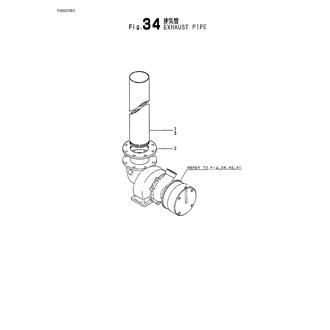

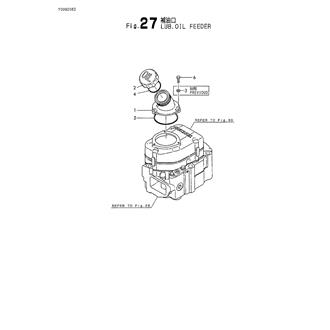

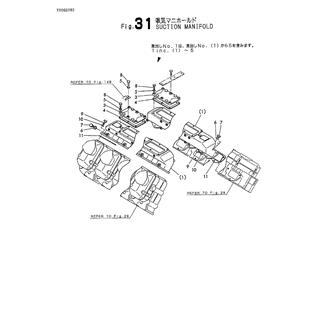

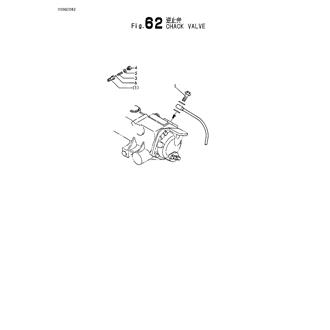

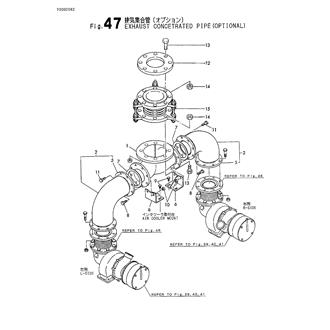

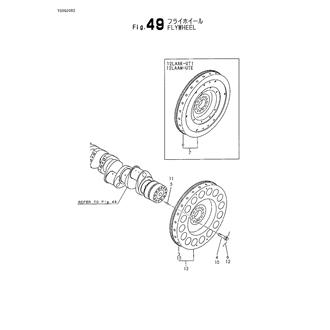

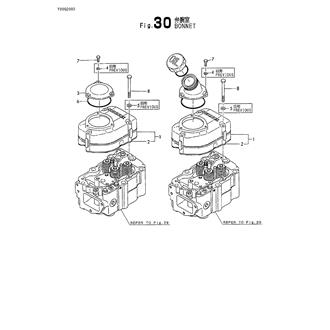

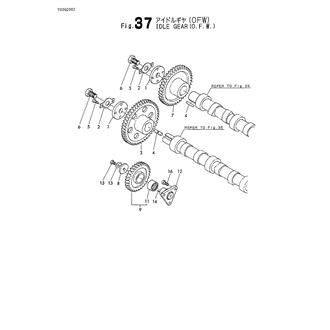

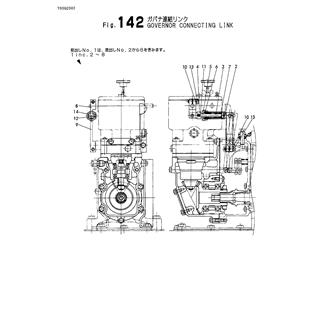

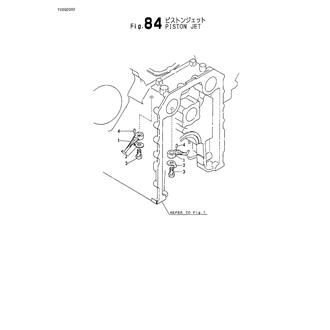

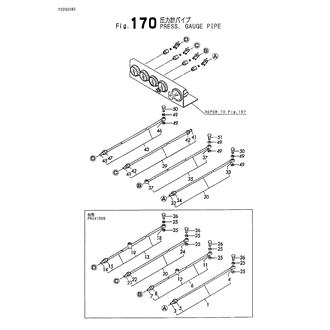

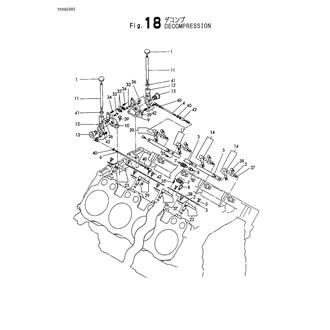

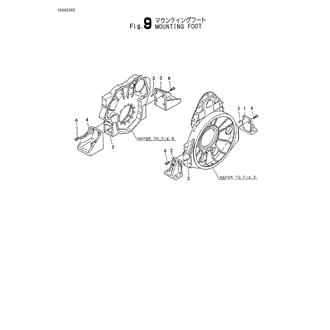

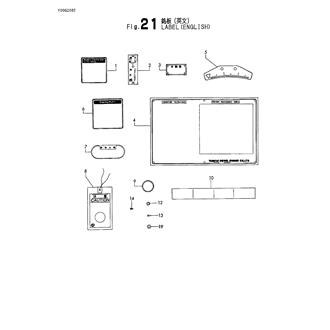

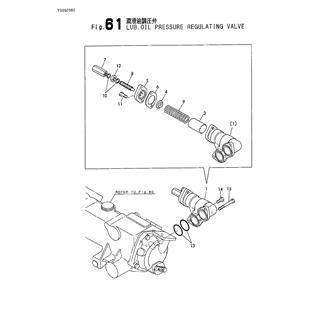

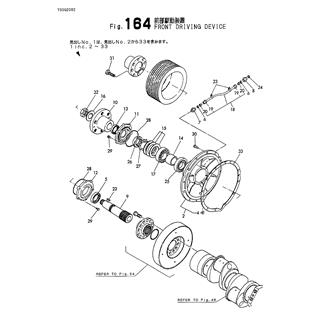

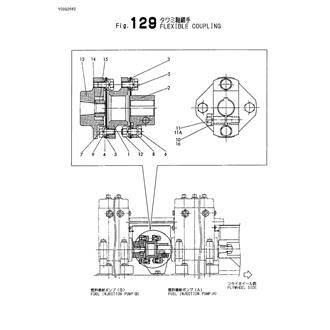

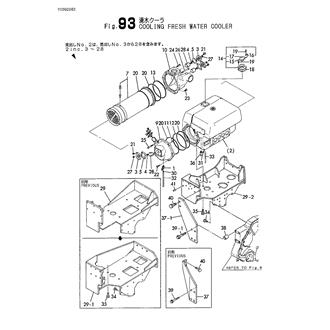

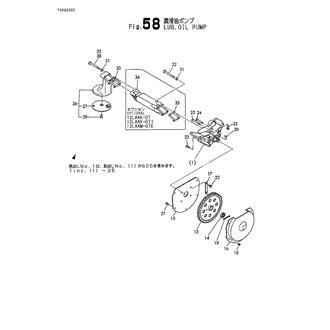

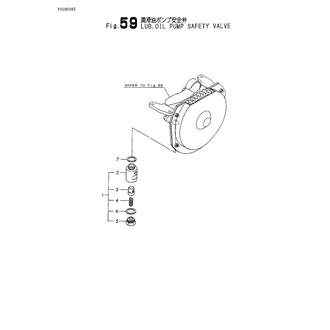

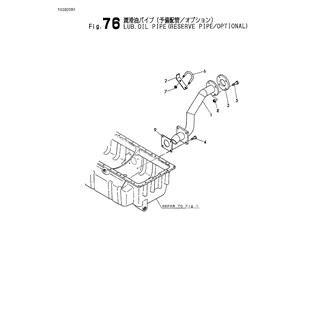

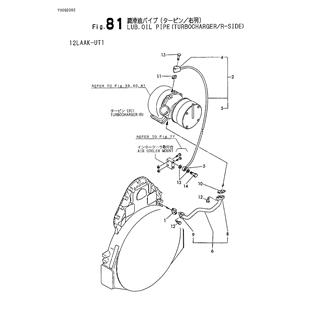

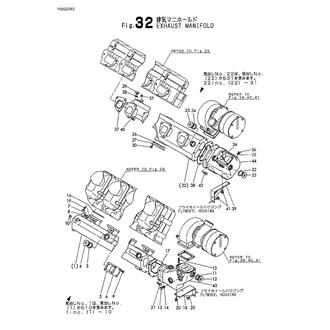

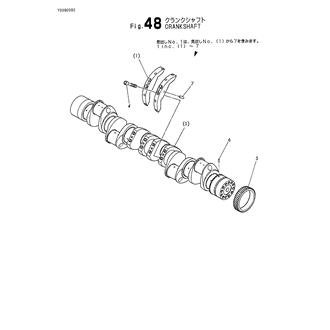

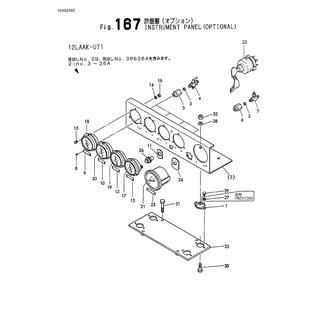

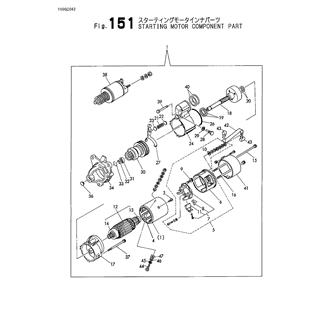

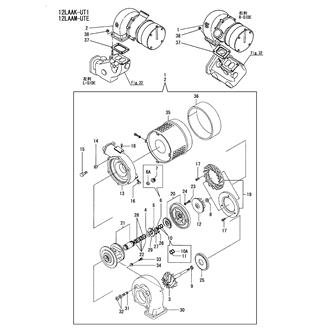

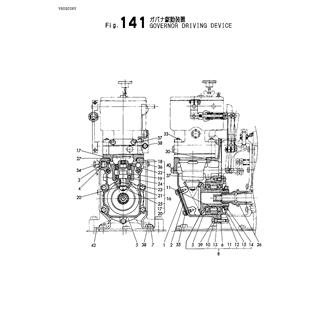

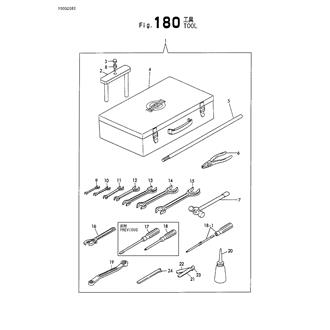

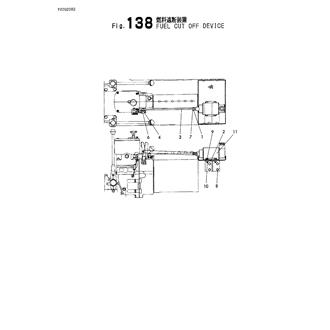

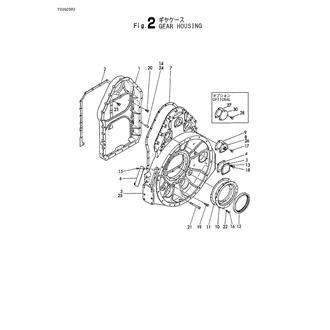

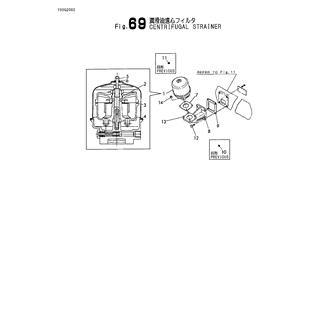

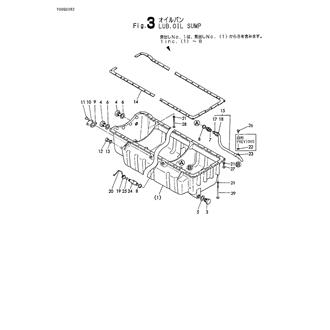

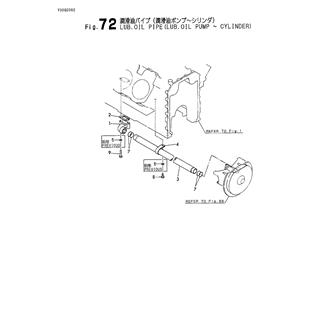

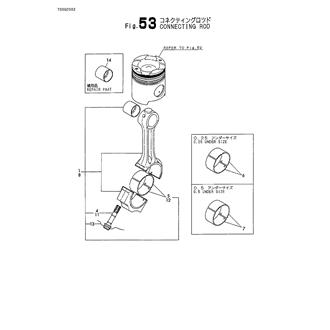

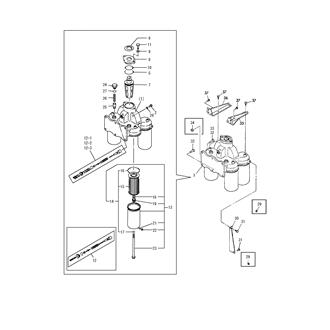

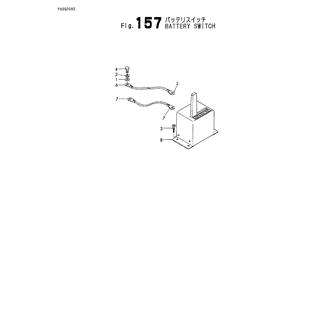

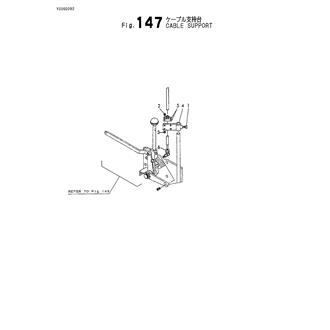

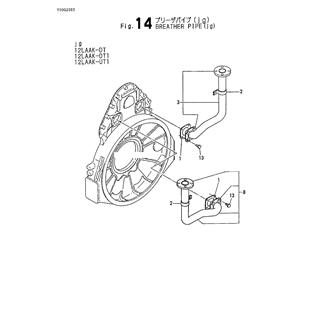

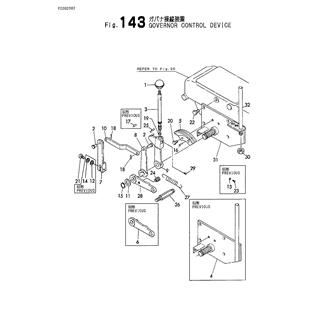

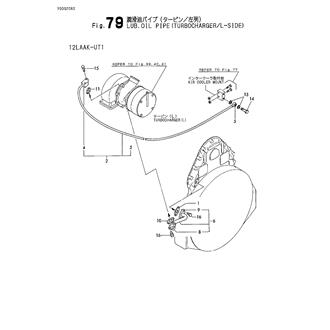

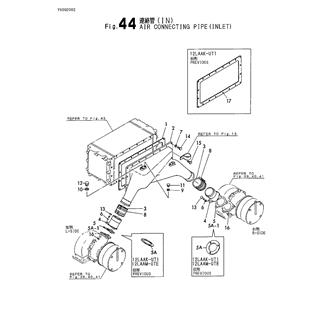

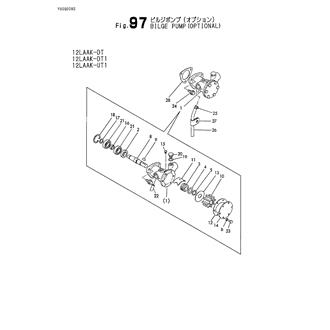

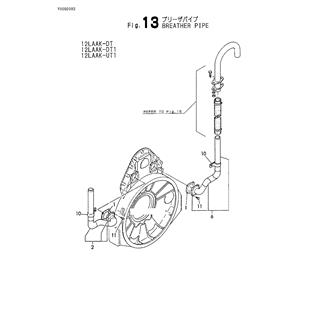

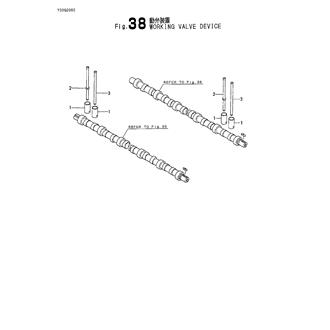

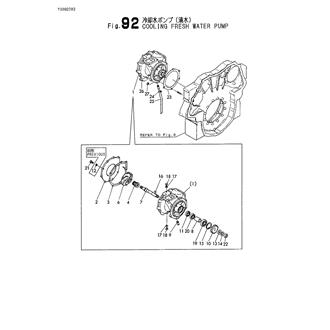

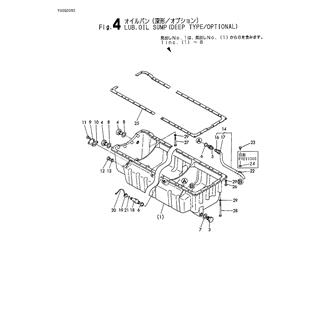

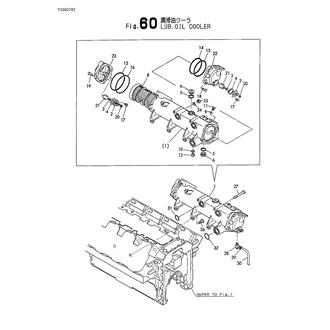

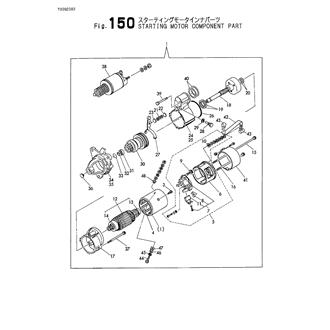

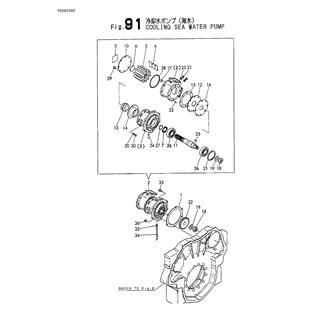

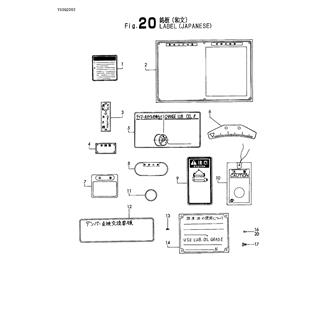

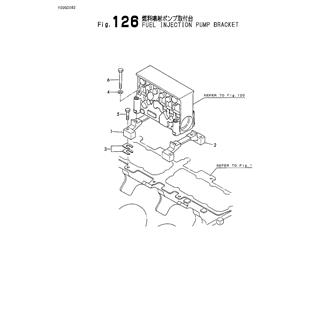

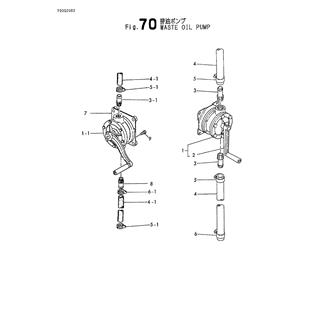

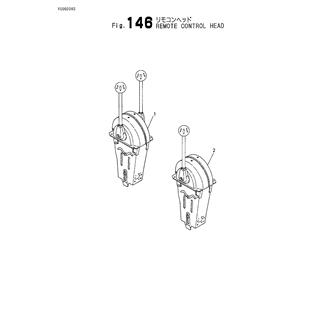

12LAAK-UT1 Large Grid View Table View FIG 1. CYLINDER BLOCK 0CG10-M20802_0001_02 Information FIG 10. HEAD GASKET 0CG10-M20802_0010_02 Information FIG 100. COOLING SEA WATER THERMOSTAT(OPTIONAL) 0CG10-M20802_0100_02 Information FIG 101. KINGSTON COCK 0CG10-M20802_0101_02 Information FIG 103. KINGSTON VALVE(12LAAK-DT 12LAAK-DT1 12LAAM-UT1) 0CG10-M20802_0103_02 Information FIG 11. SIDE COVER 0CG10-M20802_0011_02 Information FIG 111. COOLING FRESH WATER PIPE(12LAAK-UT1 12LAAM-UTE) 0CG10-M20802_0111_02 Information FIG 113. COOLING SEA WATER PIPE(12LAAK-UT1) 0CG10-M20802_0113_02 Information FIG 114. COOLING SEA WATER PIPE(OPTIONAL)(12LAAK-UT1) 0CG10-M20802_0114_02 Information FIG 115. COOLING SEA WATER PIPE/OPTIONAL)(12LAAK-UT1) 0CG10-M20802_0115_02 Information FIG 117. COOLING SEA WATER PIPE(CLUTCH) 0CG10-M20802_0117_02 Information FIG 121. FUEL INJECTION PUMP(A)(12LAAK-UT1 12LAAM-UTE) 0CG10-M20802_0121_02 Information FIG 122. FUEL INJECTION PUMP(B)(12LAAK-UT1 12LAAM-UTE) 0CG10-M20802_0122_02 Information FIG 123. FUEL FEED PUMP 0CG10-M20802_0123_02 Information FIG 124. FUEL INJECTION VALVE 0CG10-M20802_0124_02 Information FIG 125. F.I.PUMP DRIVING DEVICE 0CG10-M20802_0125_02 Information FIG 126. F.I.PUMP BRACKET 0CG10-M20802_0126_02 Information FIG 127. TIMER 0CG10-M20802_0127_02 Information FIG 128. FLEXIBLE COUPLING 0CG10-M20802_0128_02 Information FIG 129. FLEXIBLE COUPLING 0CG10-M20802_0129_02 Information FIG 13. BREATHER PIPE(12LAAK-DT 12LAAK-DT1 12LAAK-UT1) 0CG10-M20802_0013_02 Information FIG 130. FUEL FILTER 0CG10-M20802_0130_02 Information FIG 131. FUEL FILTER 0CG10-M20802_0131_02 Information FIG 132. OIL/WATER SEPARATOR(OPTIONAL) 0CG10-M20802_0132_02 Information FIG 134. FUEL PIPE(OPTIONAL)(12LAAK-DT 12LAAK-DT1 12LAAM-UT1) 0CG10-M20802_0134_02 Information FIG 135. FUEL RETURN PIPE 0CG10-M20802_0135_02 Information FIG 136. FUEL INJECTION PIPE 0CG10-M20802_0136_02 Information FIG 137. LINK DEVICE 0CG10-M20802_0137_02 Information FIG 138. FUEL CUT OFF DEVICE 0CG10-M20802_0138_02 Information FIG 14. BREATHER PIPE(JG)(JG 12LAAK-DT 12LAAK-DT1 12LAAK-UT1) 0CG10-M20802_0014_02 Information FIG 140. GOVERNOR(RHD-6) 0CG10-M20802_0140_02 Information FIG 141. GOVERNOR DRIVING DEVICE 0CG10-M20802_0141_02 Information FIG 142. GOVERNOR CONNECTING LINK 0CG10-M20802_0142_02 Information FIG 143. GOVERNOR CONTROL DEVICE 0CG10-M20802_0143_02 Information FIG 144. STOP LEVER 0CG10-M20802_0144_02 Information FIG 145. RACK CONNECTING DEVICE 0CG10-M20802_0145_02 Information FIG 146. REMOTE CONTROL HEAD 0CG10-M20802_0146_02 Information FIG 147. CABLE SUPPOT 0CG10-M20802_0147_02 Information FIG 148. REMOTE STOP 0CG10-M20802_0148_02 Information FIG 149. STARTING MOTOR 0CG10-M20802_0149_02 Information FIG 150. STARTING MOTOR COMPONENT PART 0CG10-M20802_0150_02 Information FIG 151. STARTING MOTOR COMPONENT PART 0CG10-M20802_0151_02 Information FIG 152. GENERATOR 0CG10-M20802_0152_02 Information FIG 153. GENERATOR COMPONENT PART 0CG10-M20802_0153_02 Information FIG 154. GENERATOR DRIVING DEVICE 0CG10-M20802_0154_02 Information FIG 156. WIRE HARNESS 0CG10-M20802_0156_02 Information FIG 157. BATTERY SWITCH 0CG10-M20802_0157_02 Information FIG 160. CLUTCH 0CG10-M20802_0160_02 Information FIG 163. CLUTCH REMOT CONTROL SUPPORT 0CG10-M20802_0163_02 Information FIG 164. FRONT DRIVING DEVICE 0CG10-M20802_0164_02 Information FIG 166. INSTRUMENT PANEL(OPTIONAL) 0CG10-M20802_0166_02 Information FIG 167. INSTRUMENT PANEL(OPTIONAL)(12LAAK-UT1) 0CG10-M20802_0167_02 Information FIG 170. PRESS.GAUGE PIPE 0CG10-M20802_0170_02 Information FIG 173. THERMOMETER 0CG10-M20802_0173_02 Information FIG 175. SENSOR 0CG10-M20802_0175_02 Information FIG 18. DECOMPRESSION 0CG10-M20802_0018_02 Information FIG 180. TOOL 0CG10-M20802_0180_02 Information FIG 181. SPECIAL TOOL(OPTIONAL) 0CG10-M20802_0181_02 Information FIG 182. PART FOR TARVINE REMOVAL(OPTIONL) 0CG10-M20802_0182_02 Information FIG 183. SPAIRE PART 0CG10-M20802_0183_02 Information FIG 184. RUBBER COUPLING COVER(OPTIONAL) 0CG10-M20802_0184_02 Information FIG 188. GASKET SET(OPTIONAL) 0CG10-M20802_0188_02 Information FIG 19. ENGINE LIFTER 0CG10-M20802_0019_02 Information FIG 2. GEAR HOUSING 0CG10-M20802_0002_02 Information FIG 20. LABEL(JAPANESE) 0CG10-M20802_0020_02 Information FIG 21. LABEL(ENGLISH) 0CG10-M20802_0021_02 Information FIG 22. ENGINE SET PART(12LAAM-UTE) 0CG10-M20802_0022_02 Information FIG 27. LUB.OIL FEEDER 0CG10-M20802_0027_02 Information FIG 28. CYLINDER HEAD 0CG10-M20802_0028_02 Information FIG 29. SUC./EXH.VALVE ROCKER ARM 0CG10-M20802_0029_02 Information FIG 3. LUB.OIL SUMP 0CG10-M20802_0003_02 Information FIG 30. BONNET 0CG10-M20802_0030_02 Information FIG 31. SUCTION MANIFOLD 0CG10-M20802_0031_02 Information FIG 32. EXHAUST MANIFOLD 0CG10-M20802_0032_02 Information FIG 34. EXHAUST PIPE 0CG10-M20802_0034_02 Information FIG 35. CAMSHAFT 0CG10-M20802_0035_02 Information FIG 36. IDLE GEAR(S.F.W.) 0CG10-M20802_0036_02 Information FIG 37. IDLE GEAR(O.F.W.) 0CG10-M20802_0037_02 Information FIG 38. WORKING VALVE DEVICE 0CG10-M20802_0038_02 Information FIG 39. TURBINE 0CG10-M20802_0039_02 Information FIG 4. LUB.OIL SUMP(DEEP TYPE/OPTIONAL) 0CG10-M20802_0004_02 Information FIG 41. TURBOCHARGER(jg SPEC.) 0CG10-M20802_0041_02 Information FIG 43. AIR COOLER 0CG10-M20802_0043_02 Information FIG 44. AIR CONNECTING PIPE(INLET) 0CG10-M20802_0044_02 Information FIG 45. AIR CONNECTING PIPE(OUTLET) 0CG10-M20802_0045_02 Information FIG 46. EXHAUST BEND 0CG10-M20802_0046_02 Information FIG 47. EXHAUST CONCENTRATED PIPE(OPTIONAL) 0CG10-M20802_0047_02 Information FIG 48. CRANKSHAFT 0CG10-M20802_0048_02 Information FIG 49. FLYWHEEL 0CG10-M20802_0049_02 Information FIG 52. PISTON 0CG10-M20802_0052_02 Information FIG 53. CONNECTING ROD 0CG10-M20802_0053_02 Information FIG 54. DUMPER 0CG10-M20802_0054_02 Information FIG 56. COUPLING(CG-5508S1/OPTIONAL) 0CG10-M20802_0056_02 Information FIG 58. LUB.OIL PUMP 0CG10-M20802_0058_02 Information FIG 59. LUB.OIL PUMP SAFETY VALVE 0CG10-M20802_0059_02 Information FIG 60. LUB.OIL COOLER 0CG10-M20802_0060_02 Information FIG 61. LUB.OIL REGULATING VALVE 0CG10-M20802_0061_02 Information FIG 62. CHACK VALVE 0CG10-M20802_0062_02 Information FIG 63. LUB.OIL DIPSTICK 0CG10-M20802_0063_02 Information FIG 64. LUB. OIL FILTER 0CG10-M20802_0064_02 Information FIG 65. LUB. OIL FILTER 0CG10-M20802_0065_02 Information FIG 69. CENTRIFUGAL STRAINER 0CG10-M20802_0069_02 Information FIG 7. CYLINDER LINER 0CG10-M20802_0007_02 Information FIG 70. WASTE OIL PUMP 0CG10-M20802_0070_02 Information FIG 71. LUB.OIL THERMOSTAT 0CG10-M20802_0071_02 Information FIG 72. LUB.OIL LINE(LUB.OIL PUMP-CYLINDER) 0CG10-M20802_0072_02 Information FIG 73. LUB.OIL PIPE(OUT SIDE) 0CG10-M20802_0073_02 Information FIG 74. LUB.OIL PIPE(OUT SIDE/OPTIONAL) 0CG10-M20802_0074_02 Information FIG 76. LUB.OIL PIPE(RESERVE LINE/OPTIONAL) 0CG10-M20802_0076_02 Information FIG 77. LUB.OIL PIPE(TURBOCHARGER) 0CG10-M20802_0077_02 Information FIG 79. LUB.OIL PIPE(TURBOCHARGER/L-SIDE)(12LAAK-UT1) 0CG10-M20802_0079_02 Information FIG 8. O.F.W.MOUNTING FOOT 0CG10-M20802_0008_02 Information FIG 81. LUB.OIL PIPE(TURBOCHARGER/R-SIDE)(12LAAK-UT1) 0CG10-M20802_0081_02 Information FIG 84. PISTON JET 0CG10-M20802_0084_02 Information FIG 85. LUB.OIL PIPE(CENTRIFUGAL STRAINER) 0CG10-M20802_0085_02 Information FIG 86. LUB.OIL PIPE(FUEL INJECTION PUMP) 0CG10-M20802_0086_02 Information FIG 9. MOUNTING FOOT 0CG10-M20802_0009_02 Information FIG 91. COOLING SEA WATER PUMP 0CG10-M20802_0091_02 Information FIG 92. COOLING FRESH WATER PUMP 0CG10-M20802_0092_02 Information FIG 93. COOLING FRESH WATER COOLER 0CG10-M20802_0093_02 Information FIG 94. SUB-TANK 0CG10-M20802_0094_02 Information FIG 96. ELECTRIC BILGE PUMP 0CG10-M20802_0096_02 Information FIG 97. BILGE PUMP(OPTIONAL) 0CG10-M20802_0097_02 Information FIG 99. COOLING FRESH WATER THERMOSTAT 0CG10-M20802_0099_02 Information
