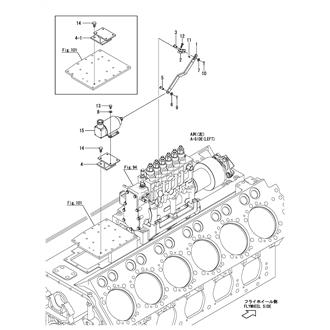

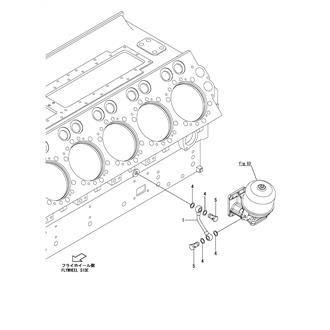

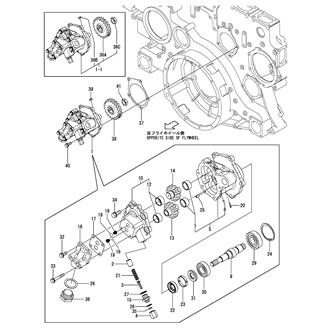

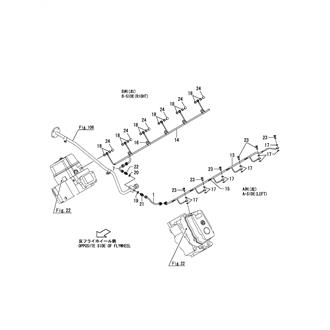

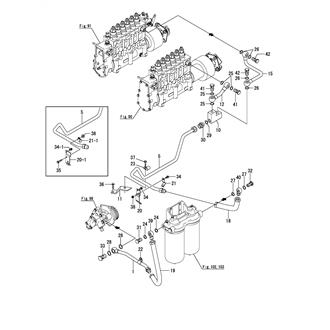

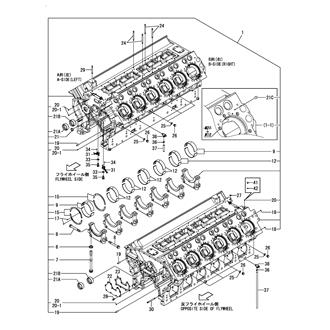

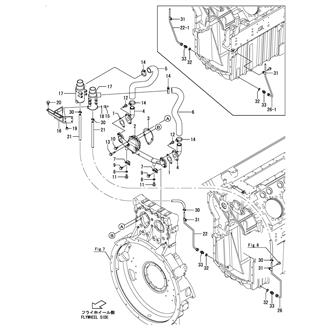

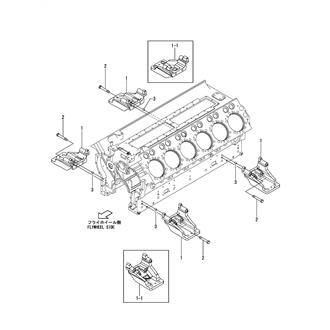

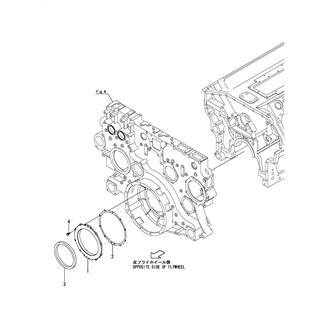

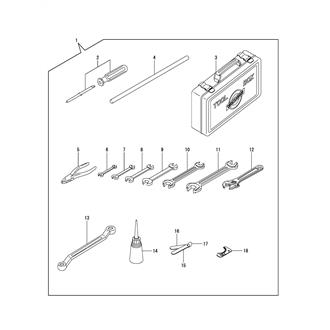

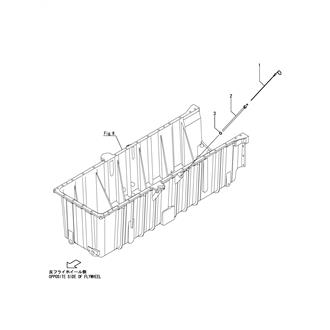

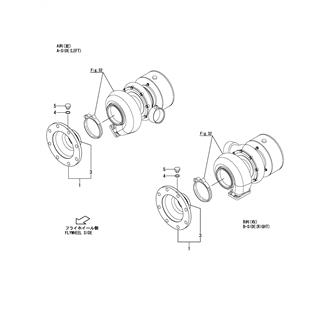

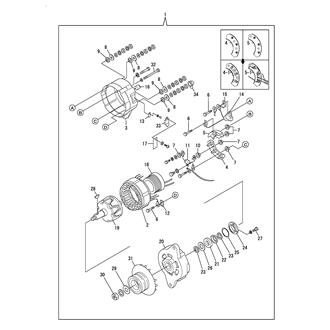

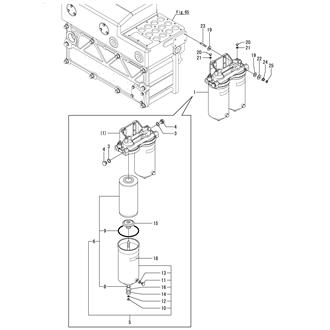

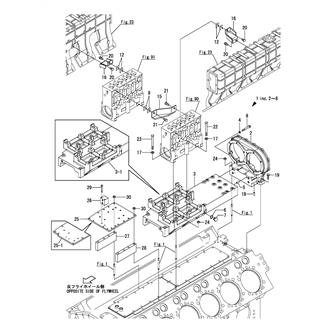

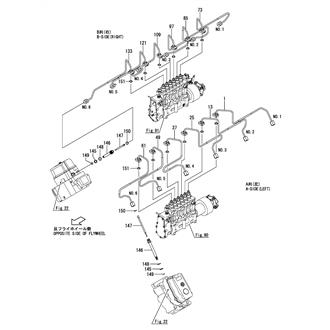

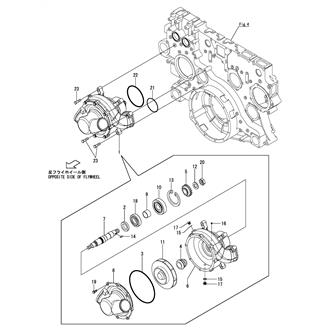

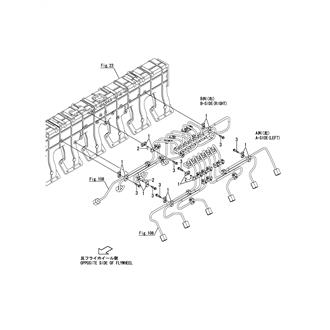

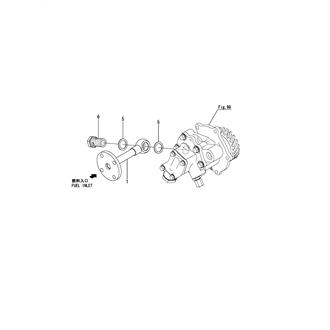

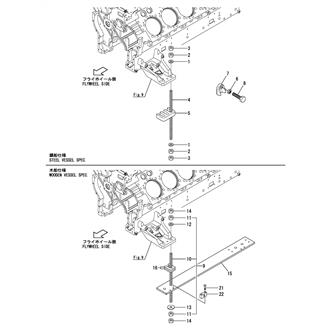

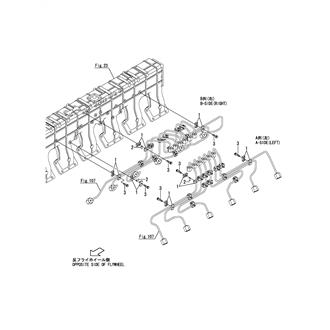

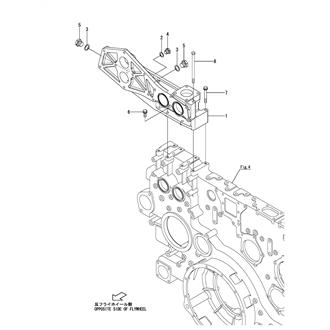

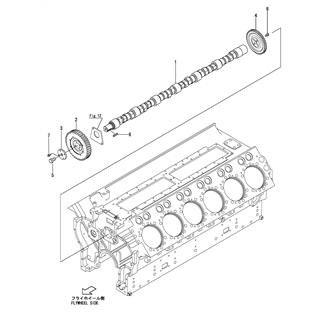

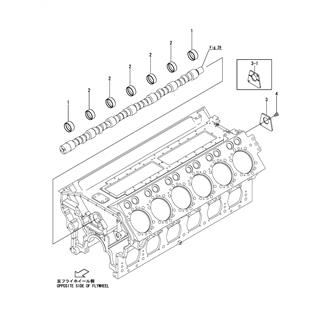

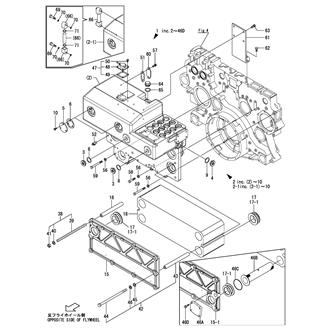

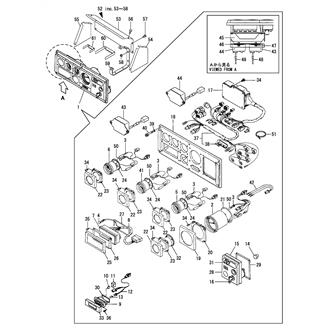

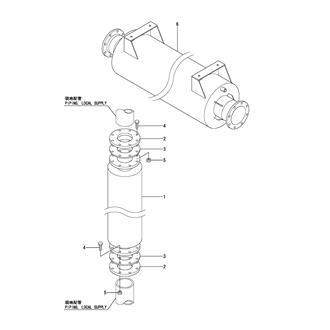

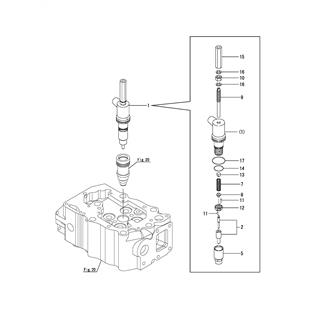

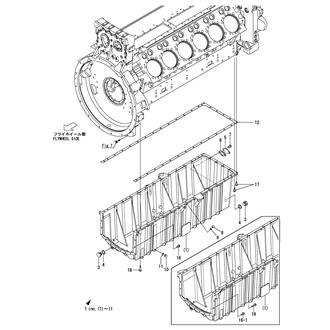

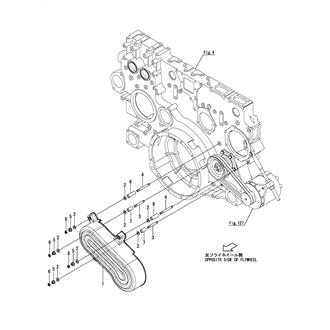

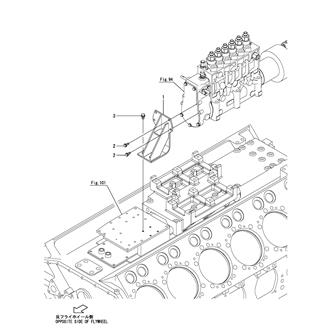

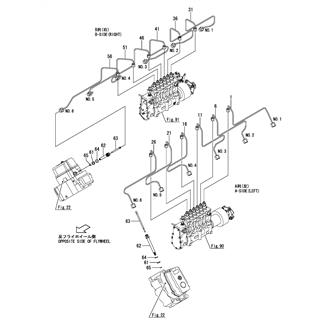

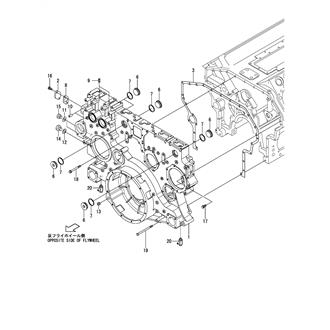

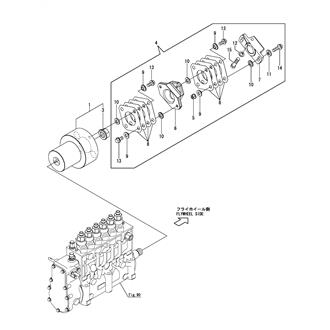

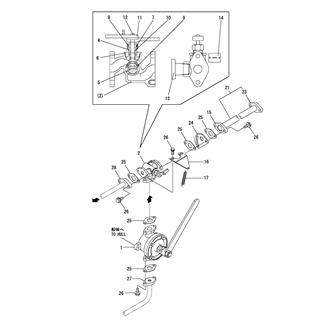

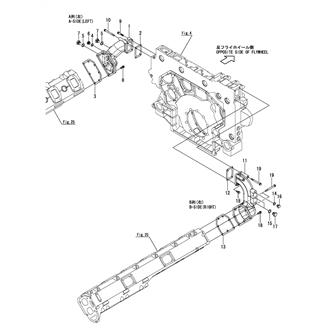

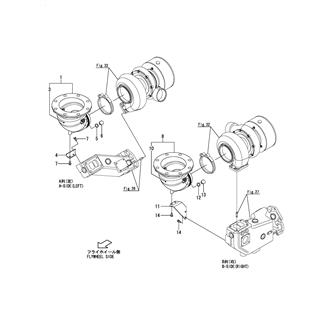

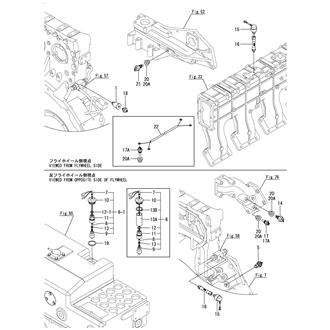

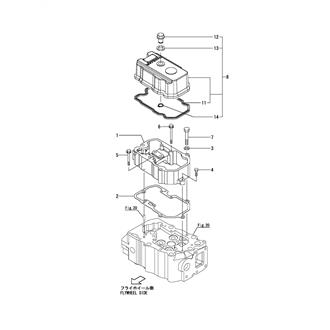

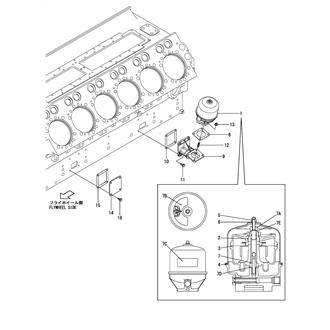

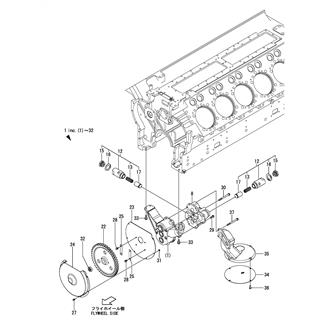

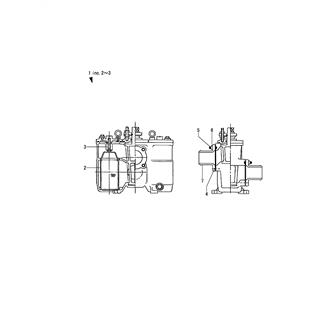

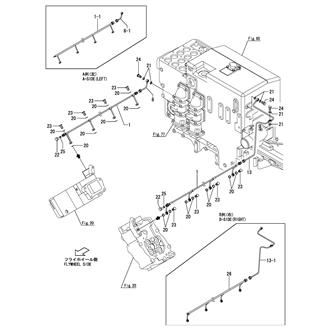

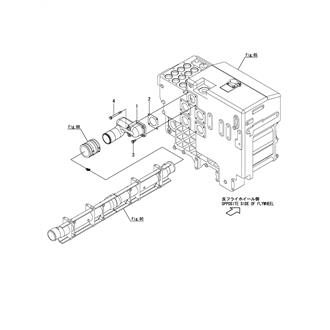

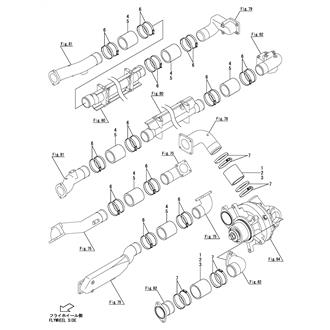

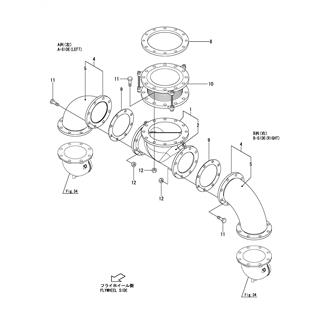

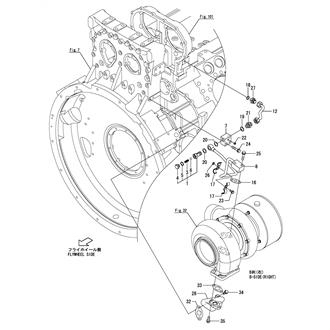

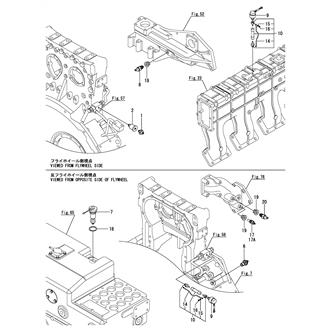

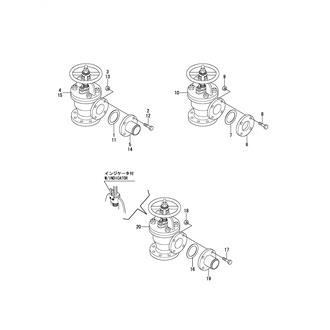

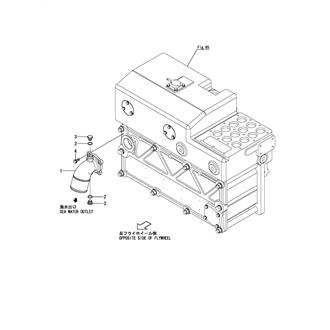

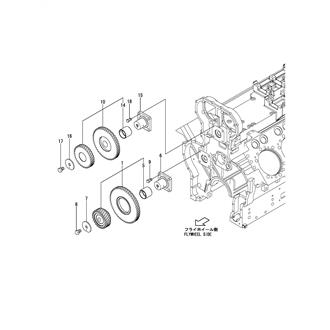

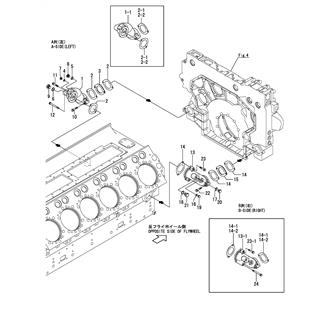

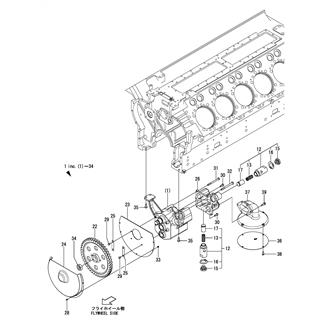

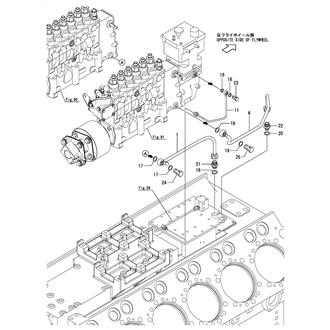

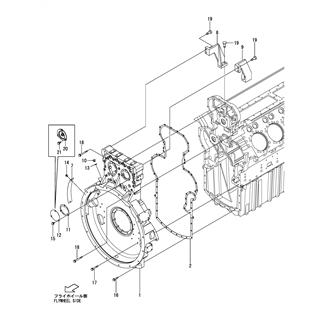

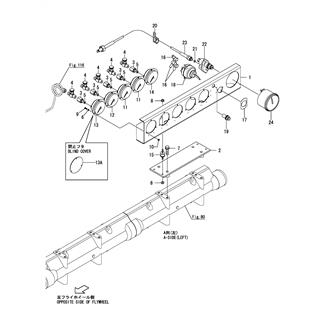

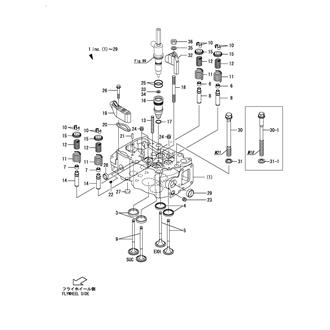

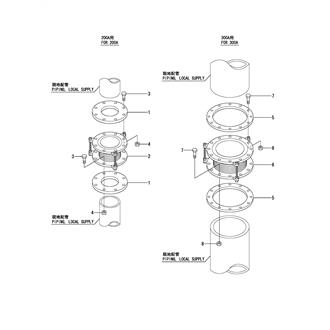

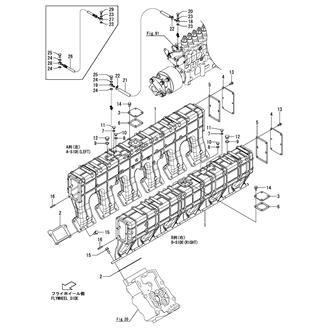

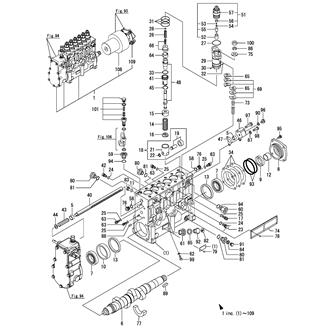

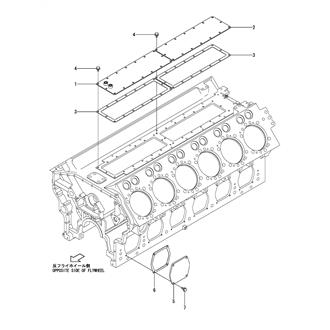

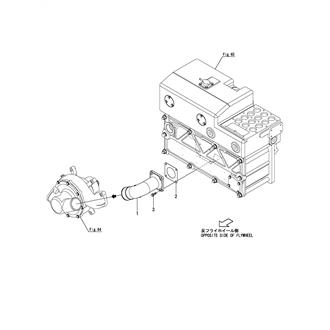

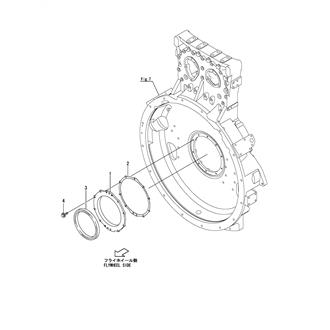

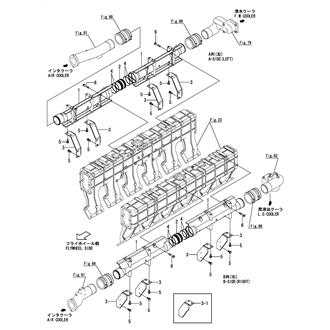

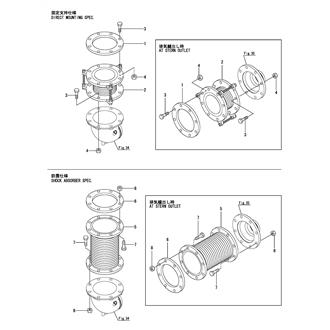

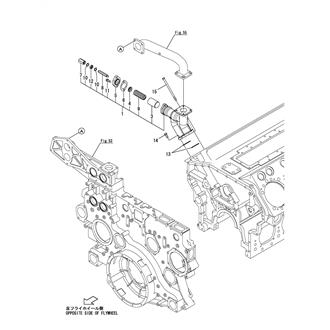

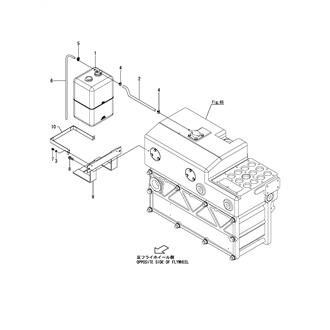

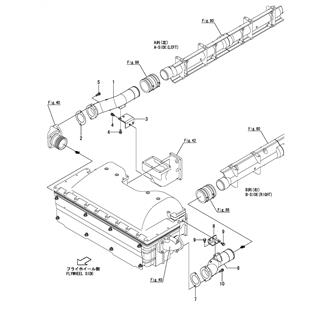

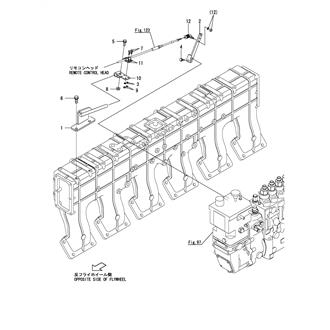

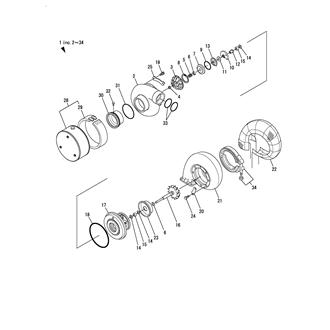

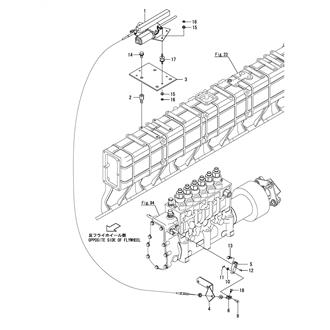

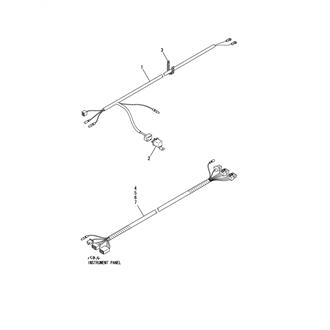

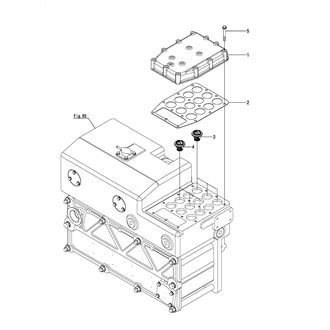

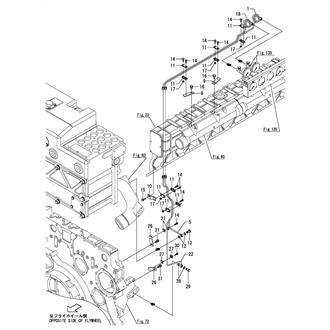

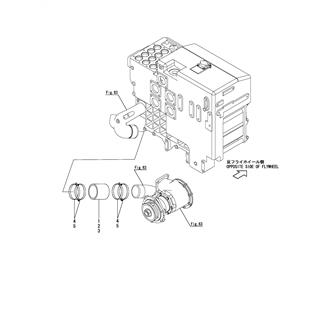

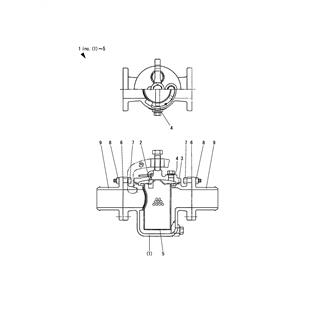

12AYM-ET Large Grid View Table View FIG 1. CYLINDER BLOCK 0CG10-M33301_0001_03 Information FIG 10. ENGINE SET PART 0CG10-M33301_0010_03 Information FIG 100. F.I.PUMP DRIVING DEVICE 0CG10-M33301_0100_03 Information FIG 101. FUEL PUMP BRACKET 0CG10-M33301_0101_03 Information FIG 102. FUEL FILTER 0CG10-M33301_0102_03 Information FIG 103. FUEL STRAINER(SELECTOR COCK TYPE) 0CG10-M33301_0103_03 Information FIG 104. FUEL PIPE(FEED PUMP IN) 0CG10-M33301_0104_03 Information FIG 105. FUEL PIPE(FEED PUMP-INJECTION PUMP)(UP TO E00106) 0CG10-M33301_0105_03 Information FIG 106. FUEL PIPE(INJECTION PUMP OUT) 0CG10-M33301_0106_03 Information FIG 107. FUEL INJECTION PIPE 0CG10-M33301_0107_03 Information FIG 108. FUEL INJECTION PIPE(DOUBLE PIPE) 0CG10-M33301_0108_03 Information FIG 109. SUPPORT(INJECTION PIPE) 0CG10-M33301_0109_03 Information FIG 11. LUB.OIL FEEDER 0CG10-M33301_0011_03 Information FIG 110. SUPPORT(DOUBLE INJECTION PIPE) 0CG10-M33301_0110_03 Information FIG 111. FUEL OVERFLOW PIPE(INJECTION VALVE) 0CG10-M33301_0111_03 Information FIG 112. FUEL OVERFLOW PIPE(INJECTION PUMP) 0CG10-M33301_0112_03 Information FIG 113. FUEL OVERFLOW PIPE(DOUBLE INJECTION PIPE) 0CG10-M33301_0113_03 Information FIG 114. FUEL OVERFLOW TANK & ALARM(DOUBLE INJECTION PIPE) 0CG10-M33301_0114_03 Information FIG 115. FUEL OVERFLOW SUMP 0CG10-M33301_0115_03 Information FIG 116. FUEL PRESSUER GAUGE PIPE 0CG10-M33301_0116_03 Information FIG 117. SUPPORT(GOVERNOR CASE) 0CG10-M33301_0117_03 Information FIG 118. SPEED CONTROL DEVICE 0CG10-M33301_0118_03 Information FIG 119. ENGINE STOP DEVICE(ELECTRIC MAGNET) 0CG10-M33301_0119_03 Information FIG 12. CAMSHAFT METAL 0CG10-M33301_0012_03 Information FIG 120. ENGINE STOP DEVICE(MOTOR SOLENOID)(EARTH TYPE) 0CG10-M33301_0120_03 Information FIG 121. ENGINE STOP DEVICE(MOTOR SOLENOID)(ERATH FLOAT TYPE) 0CG10-M33301_0121_03 Information FIG 122. WIRE REMOTE CONTROL RECEIVER(GOVERNOR) 0CG10-M33301_0122_03 Information FIG 123. REMOTE CONTROL WIRE 0CG10-M33301_0123_03 Information FIG 124. STARTING MOTOR(EARTH TYPE) 0CG10-M33301_0124_03 Information FIG 125. STARTING MOTOR(ERATH FLOAT TYPE) 0CG10-M33301_0125_03 Information FIG 126. SYNCHRONOUS SWITCH 0CG10-M33301_0126_03 Information FIG 127. GENERATOR & DRIVING DEVICE 0CG10-M33301_0127_03 Information FIG 128. GENERATOR COMPONENT PART 0CG10-M33301_0128_03 Information FIG 129. COVER(V-BELT) 0CG10-M33301_0129_03 Information FIG 13. DECOMPRESSION 0CG10-M33301_0013_03 Information FIG 130. BATTERY SWITCH 0CG10-M33301_0130_03 Information FIG 131. WIRE HARNESS 0CG10-M33301_0131_03 Information FIG 132. SUB-HARNESS 0CG10-M33301_0132_03 Information FIG 133. SENSOR(EARTH TYPE) 0CG10-M33301_0133_03 Information FIG 134. SENSOR(EARTH FLOAT TYPE) 0CG10-M33301_0134_03 Information FIG 135. INSTRUMENT PANEL(ENGINE ATTACHED) 0CG10-M33301_0135_03 Information FIG 136. INSTRUMENT PANEL(MAIN) 0CG10-M33301_0136_03 Information FIG 137. INSTRUMENT PANEL(SUB) 0CG10-M33301_0137_03 Information FIG 138. TOOL 0CG10-M33301_0138_03 Information FIG 139. (33A)TURBOCHARGER COMPONENT PART 0CG10-M33301_0139_03 Information FIG 14. BREATHER PIPE 0CG10-M33301_0014_03 Information FIG 140. (46A)LUB.OIL PUMP(FROM E00109) 0CG10-M33301_0140_03 Information FIG 141. (87A)C.W.PRESSUER GAUGE PIPE 0CG10-M33301_0141_03 Information FIG 142. (105A)FUEL PIPE(FEED PUMP-INJECTION PUMP)(FROM E00107) 0CG10-M33301_0142_03 Information FIG 143. (116A)FUEL PRESSUER GAUGE PIPE 0CG10-M33301_0143_03 Information FIG 144. (135A)INSTRUMENT PANEL(ENGINE ATTACHHED) 0CG10-M33301_0144_03 Information FIG 15. BREATHER(OUT BOAD) 0CG10-M33301_0015_03 Information FIG 16. MIST FLEXIBLE PIPE(JG SPEC.) 0CG10-M33301_0016_03 Information FIG 17. LABEL 0CG10-M33301_0017_03 Information FIG 18. SAFETY LABEL 0CG10-M33301_0018_03 Information FIG 19. ENGINE LIFTER 0CG10-M33301_0019_03 Information FIG 2. CYLINDER LINER & HEAD GASKET 0CG10-M33301_0002_03 Information FIG 20. CYLINDER HEAD 0CG10-M33301_0020_03 Information FIG 21. LOCKER ARM 0CG10-M33301_0021_03 Information FIG 22. BONNET 0CG10-M33301_0022_03 Information FIG 23. SUCTION MANIFOLD 0CG10-M33301_0023_03 Information FIG 24. SUCTION PRESSUER GAUGE PIPE 0CG10-M33301_0024_03 Information FIG 25. EXHAUST MANIFOLD 0CG10-M33301_0025_03 Information FIG 26. EXH.CONNECTING PIPE(A-SIDE) 0CG10-M33301_0026_03 Information FIG 27. EXH.CONNECTING PIPE(B-SIDE) 0CG10-M33301_0027_03 Information FIG 28. CAMSHAFT 0CG10-M33301_0028_03 Information FIG 29. IDLE GEAR(S.F.W.) 0CG10-M33301_0029_03 Information FIG 3. CAMSHAFT COVER & SIDE COVER 0CG10-M33301_0003_03 Information FIG 30. IDLE GEAR(O.F.W.) 0CG10-M33301_0030_03 Information FIG 31. WORKING VALVE DEVICE 0CG10-M33301_0031_03 Information FIG 32. TURBOCHARGER 0CG10-M33301_0032_03 Information FIG 33. TURBOCHARGER COMPONENT PART 0CG10-M33301_0033_03 Information FIG 34. EXHAUST BEND 0CG10-M33301_0034_03 Information FIG 35. EXHAUST BEND(STERN OUTLET) 0CG10-M33301_0035_03 Information FIG 36. EXHAUST COLLECTING PIPE 0CG10-M33301_0036_03 Information FIG 37. BELLOWS 0CG10-M33301_0037_03 Information FIG 38. BELLOWS 0CG10-M33301_0038_03 Information FIG 39. SILENCER 0CG10-M33301_0039_03 Information FIG 4. GEAR HOUSING(O.F.W.) 0CG10-M33301_0004_03 Information FIG 40. AIR COOLER 0CG10-M33301_0040_03 Information FIG 41. AIR DUCT(AIR COOLER IN) 0CG10-M33301_0041_03 Information FIG 42. AIR DUCT(AIR COOLER OUT) 0CG10-M33301_0042_03 Information FIG 43. CRANKSHAFT & FLYWHEEL 0CG10-M33301_0043_03 Information FIG 44. PISTON & CONNECTING ROD 0CG10-M33301_0044_03 Information FIG 45. DAMPER & V-PULLEY 0CG10-M33301_0045_03 Information FIG 46. LUB.OIL PUMP(UP TO E00108) 0CG10-M33301_0046_03 Information FIG 47. LUB.OIL COOLER 0CG10-M33301_0047_03 Information FIG 48. L.O.PRESS.CONTROL VALVE 0CG10-M33301_0048_03 Information FIG 49. DIPSTICK 0CG10-M33301_0049_03 Information FIG 5. OIL SEAL CASE(SIDE OF FLYWHEEL) 0CG10-M33301_0005_03 Information FIG 50. L.O.STRAINER(EARTH TYPE) 0CG10-M33301_0050_03 Information FIG 51. L.O.STRAINER(EARTH FLOAT TYPE) 0CG10-M33301_0051_03 Information FIG 52. BRACKET(LUB.OIL STRAINER) 0CG10-M33301_0052_03 Information FIG 53. LUB.OIL BY-PASS STRAINER 0CG10-M33301_0053_03 Information FIG 54. LUB.OIL WASTE PUMP 0CG10-M33301_0054_03 Information FIG 55. L.O.PIPE(CONTROL VALVE IN) 0CG10-M33301_0055_03 Information FIG 56. LUB. OIL PIPE(BY-PASS) 0CG10-M33301_0056_03 Information FIG 57. L.O.PIPE(TURBOCHAGER:A-SIDE) 0CG10-M33301_0057_03 Information FIG 58. L.O.PIPE(TURBOCHAGER:B-SIDE) 0CG10-M33301_0058_03 Information FIG 59. LUB.OIL PIPE(F.I.PUMP) 0CG10-M33301_0059_03 Information FIG 6. OIL SEAL CASE(OPPOSITE SIDE OF FLYWHEEL) 0CG10-M33301_0006_03 Information FIG 60. LUB.OIL PIPE(GOVERNOR) 0CG10-M33301_0060_03 Information FIG 61. LUB.OIL PRESSUER GAUGE PIPE 0CG10-M33301_0061_03 Information FIG 62. LUB.OIL WING PUMP 0CG10-M33301_0062_03 Information FIG 63. COOLING SEA WATER PUMP 0CG10-M33301_0063_03 Information FIG 64. COOLING FRESH WATER PUMP 0CG10-M33301_0064_03 Information FIG 65. FRESH WATER COOLER 0CG10-M33301_0065_03 Information FIG 66. SUB-TANK(UP TO E00106) 0CG10-M33301_0066_03 Information FIG 67. BILGE PUMP(OPTIONAL) 0CG10-M33301_0067_03 Information FIG 68. COOLING WATER THRMOSTAT 0CG10-M33301_0068_03 Information FIG 69. KINGSTON VALVE 0CG10-M33301_0069_03 Information FIG 7. FLYWHEEL HOUSING 0CG10-M33301_0007_03 Information FIG 70. SEA WATER STRAINER(SINGLE) 0CG10-M33301_0070_03 Information FIG 71. SEA WATER STRAINER(DUPLEX) 0CG10-M33301_0071_03 Information FIG 72. C.F.W.PIPE(BLOCK IN) 0CG10-M33301_0072_03 Information FIG 73. C.F.W.COLLECTING PIPE 0CG10-M33301_0073_03 Information FIG 74. AIR VENT PIPE(CYLINDER HEAD) 0CG10-M33301_0074_03 Information FIG 75. C.F.W.PIPE(HEAD-EXH.CONNECTING PIPE) 0CG10-M33301_0075_03 Information FIG 76. C.F.W.PIPE(EXH.MANIFOLD OUT) 0CG10-M33301_0076_03 Information FIG 77. C.F.W.PIPE(TANK IN) 0CG10-M33301_0077_03 Information FIG 78. C.F.W.PIPE(TANK OUT) 0CG10-M33301_0078_03 Information FIG 79. C.F.W.PIPE(F.W.COOLER OUT) 0CG10-M33301_0079_03 Information FIG 8. LUB.OIL SUMP 0CG10-M33301_0008_03 Information FIG 80. C.F.W.CONNECTING PIPE 0CG10-M33301_0080_03 Information FIG 81. C.F.W.PIPE(AIR COOLER IN/OUT) 0CG10-M33301_0081_03 Information FIG 82. C.F.W.PIPE(L.O.COOLER IN/BY-PASS) 0CG10-M33301_0082_03 Information FIG 83. C.S.W.PIPE(PUMP IN-F.W.COOLER) 0CG10-M33301_0083_03 Information FIG 84. C.S.W.PIPE(F.W.COOLER OUT) 0CG10-M33301_0084_03 Information FIG 85. AIR VENT PIPE(THERMOSTAT) 0CG10-M33301_0085_03 Information FIG 86. BLIND COVER 0CG10-M33301_0086_03 Information FIG 87. C.W.PRESSUER GAUGE PIPE 0CG10-M33301_0087_03 Information FIG 88. RUBBER HOSE(FRESH WATER) 0CG10-M33301_0088_03 Information FIG 89. RUBBER HOSE(SEA WATER) 0CG10-M33301_0089_03 Information FIG 9. ENGINE MOUNT 0CG10-M33301_0009_03 Information FIG 90. FUEL INJECTION PUMP(A-SIDE) 0CG10-M33301_0090_03 Information FIG 91. FUEL INJECTION PUMP(B-SIDE) 0CG10-M33301_0091_03 Information FIG 92. COUPLING(A-SIDE) 0CG10-M33301_0092_03 Information FIG 93. COUPLING(B-SIDE) 0CG10-M33301_0093_03 Information FIG 94. GOVERNOR CASE 0CG10-M33301_0094_03 Information FIG 95. BOOST COMPENSATER 0CG10-M33301_0095_03 Information FIG 96. GOVERNOR DRIVING DEVICE 0CG10-M33301_0096_03 Information FIG 97. HYDRAULIC GOVERNOR 0CG10-M33301_0097_03 Information FIG 98. FUEL FEED PUMP 0CG10-M33301_0098_03 Information FIG 99. FUEL INJECTION VALVE 0CG10-M33301_0099_03 Information
