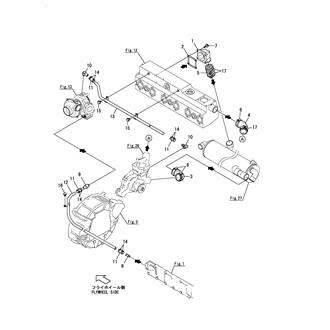

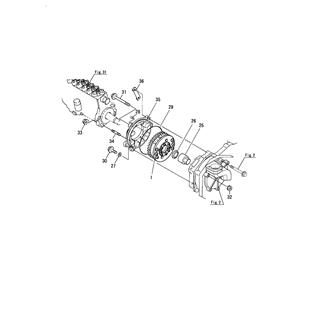

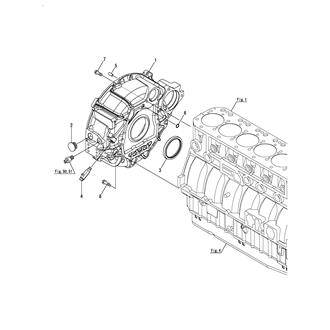

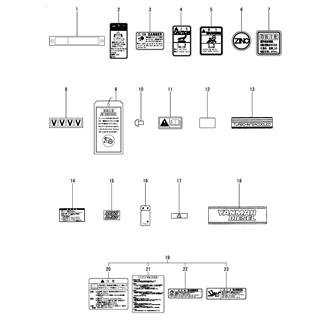

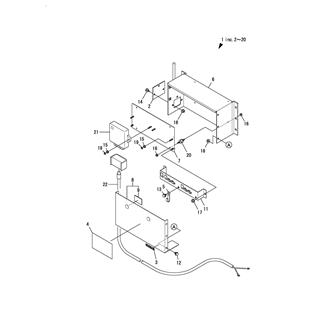

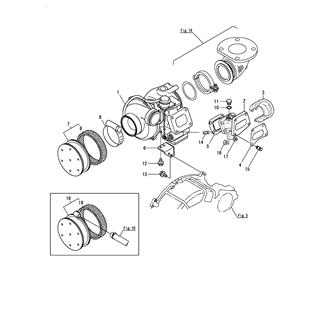

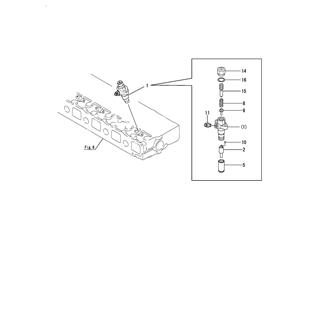

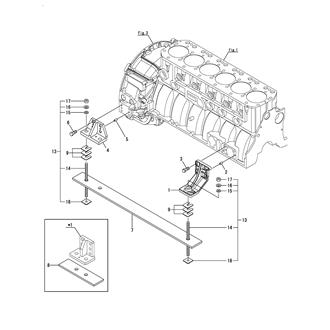

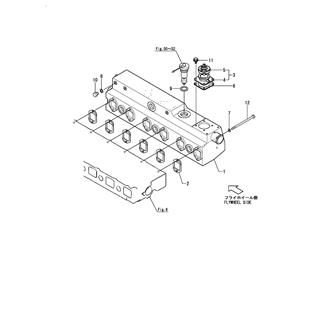

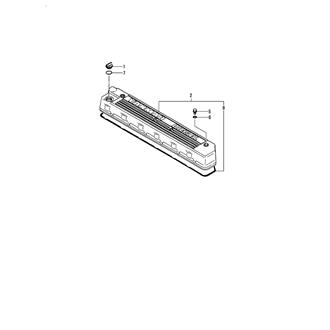

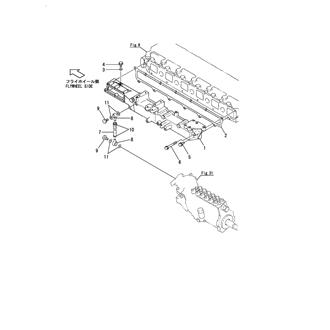

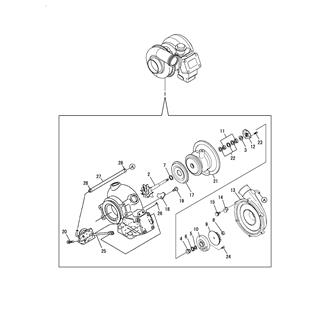

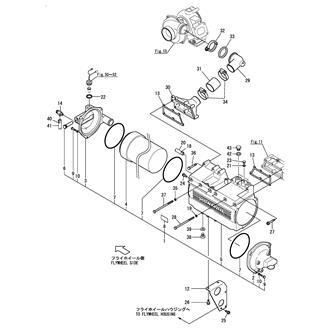

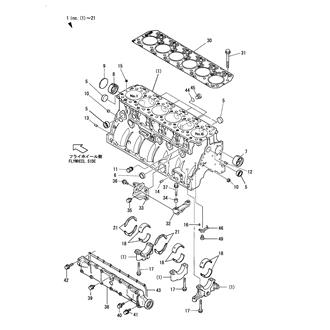

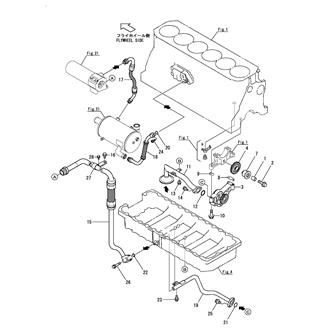

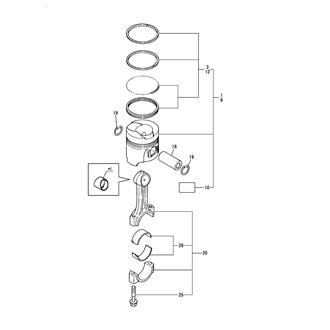

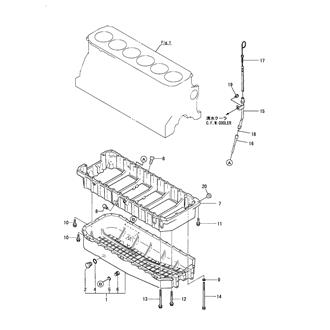

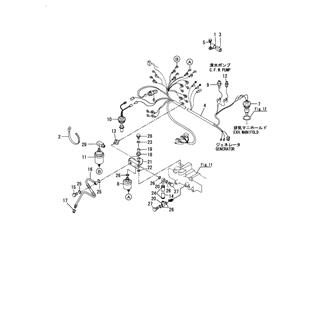

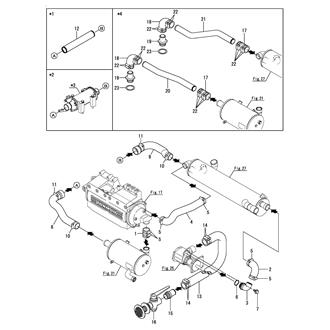

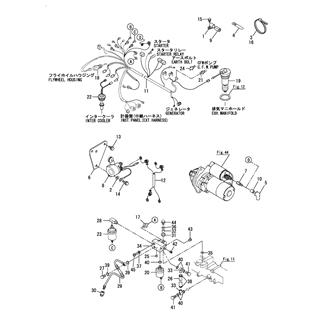

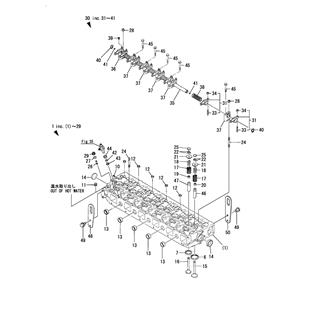

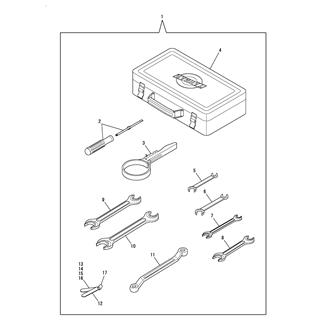

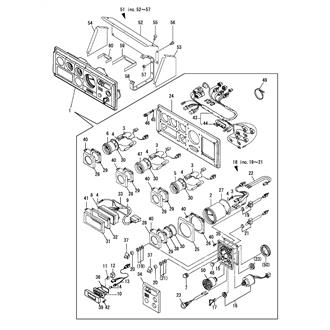

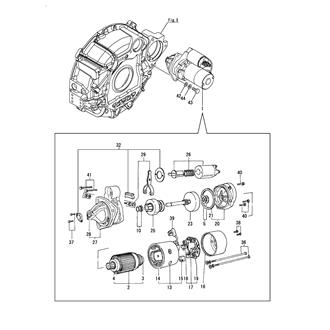

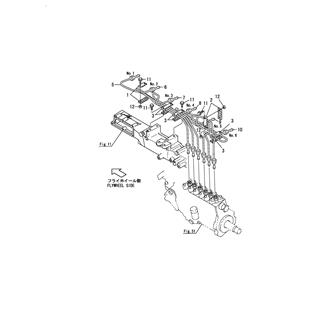

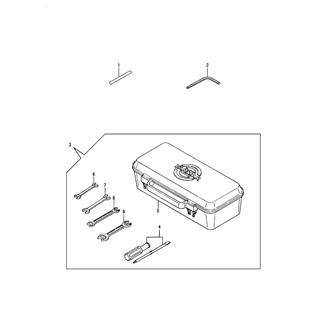

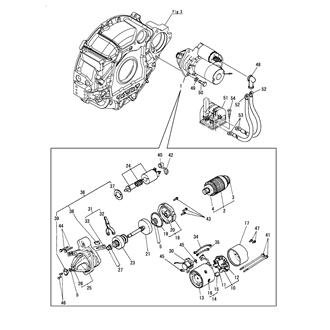

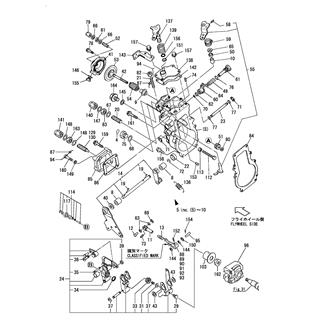

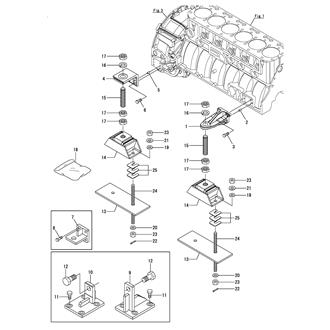

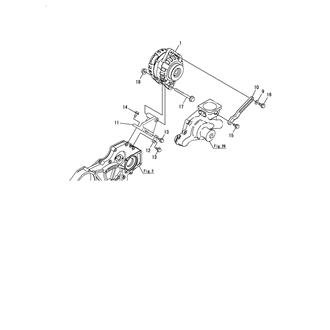

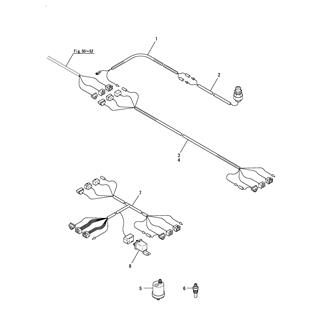

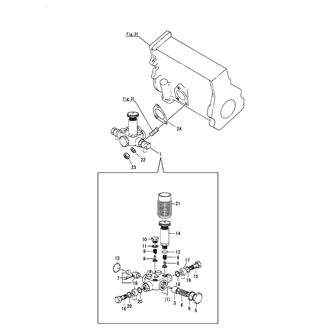

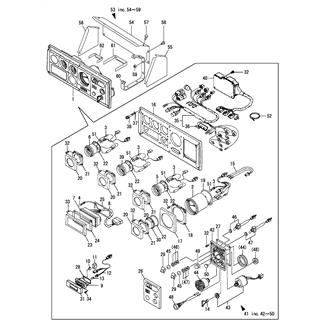

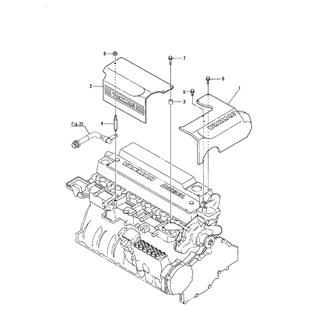

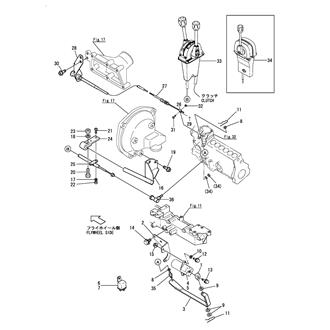

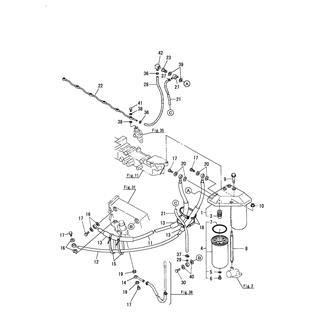

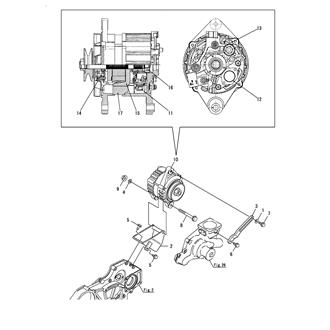

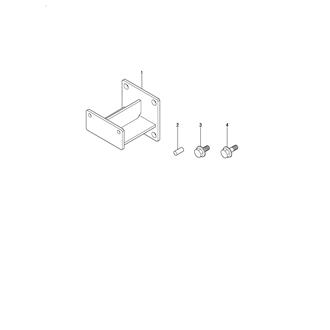

6LY2M-WST Large Grid View Table View FIG 1. CYLINDER BLOCK 0CF50-M00170_0001_01 Information FIG 10. BONNET & BREATHER(INTAKE RETURNING TYPE) 0CF50-M00170_0010_01 Information FIG 11. SUCTION MANIFOLD 0CF50-M00170_0011_01 Information FIG 12. EXHAUST MANIFOLD 0CF50-M00170_0012_01 Information FIG 13. TURBINE 0CF50-M00170_0013_01 Information FIG 14. TURBINE(INNER PARTS) 0CF50-M00170_0014_01 Information FIG 15. MIXING ELBOW 0CF50-M00170_0015_01 Information FIG 16. EXHAUST BEND 0CF50-M00170_0016_01 Information FIG 17. INTER COOLER 0CF50-M00170_0017_01 Information FIG 18. CAMSHAFT & DRIVING GEAR 0CF50-M00170_0018_01 Information FIG 19. CRANKSHAFT & FLYWHEEL 0CF50-M00170_0019_01 Information FIG 2. GEAR HOUSING 0CF50-M00170_0002_01 Information FIG 20. PISTON & CONNECTING ROD 0CF50-M00170_0020_01 Information FIG 21. LUB. OIL COOLER & FILTER 0CF50-M00170_0021_01 Information FIG 22. LUB. OIL PUMP & PIPE 0CF50-M00170_0022_01 Information FIG 23. LUB. OIL PIPE(TURBINE) 0CF50-M00170_0023_01 Information FIG 24. OIL SUCTION/DRAIN PUMP(OPTIONAL) 0CF50-M00170_0024_01 Information FIG 25. COOLING PUMP(SEA WATER) 0CF50-M00170_0025_01 Information FIG 26. COOLING PUMP(FRESH WATER) 0CF50-M00170_0026_01 Information FIG 27. COOLER(FRESH WATER) 0CF50-M00170_0027_01 Information FIG 28. COOLING PIPE(SEA WATER) 0CF50-M00170_0028_01 Information FIG 29. COOLING PIPE(FRESH WATER) 0CF50-M00170_0029_01 Information FIG 3. FLYWHEEL HOUSING 0CF50-M00170_0003_01 Information FIG 30. BILGE PUMP(OPTIONAL) 0CF50-M00170_0030_01 Information FIG 31. FUEL INJECTION PUMP 0CF50-M00170_0031_01 Information FIG 32. GOVERNOR 0CF50-M00170_0032_01 Information FIG 33. FUEL FEED PUMP 0CF50-M00170_0033_01 Information FIG 34. TIMER 0CF50-M00170_0034_01 Information FIG 35. FUEL INJECTION VALVE 0CF50-M00170_0035_01 Information FIG 36. FUEL INJECTION PIPE 0CF50-M00170_0036_01 Information FIG 37. FUEL PIPE & FUEL FILTER 0CF50-M00170_0037_01 Information FIG 38. WATER SEPARATOR 0CF50-M00170_0038_01 Information FIG 39. ENGINE STOP DEVICE 0CF50-M00170_0039_01 Information FIG 4. OIL SUMP 0CF50-M00170_0004_01 Information FIG 40. CLUTCH(YX-50S/YX-50S-1) 0CF50-M00170_0040_01 Information FIG 41. ACCESSORY(ZF280-1) 0CF50-M00170_0041_01 Information FIG 42. STARTER MOTOR(24V/EARTH TYPE) 0CF50-M00170_0042_01 Information FIG 43. STARTER MOTOR(24V/EARTH FLOAT TYPE) 0CF50-M00170_0043_01 Information FIG 44. STARTER MOTOR(12V) 0CF50-M00170_0044_01 Information FIG 45. GENERATOR(24V/EARTH TYPE) 0CF50-M00170_0045_01 Information FIG 46. GENERATOR(24V/EARTH FLOAT TYPE) 0CF50-M00170_0046_01 Information FIG 47. GENERATOR(12V) 0CF50-M00170_0047_01 Information FIG 48. V-PULLY(GENERATOR) 0CF50-M00170_0048_01 Information FIG 49. COVER 0CF50-M00170_0049_01 Information FIG 5. MOUNTING FOOT 0CF50-M00170_0005_01 Information FIG 50. WIRE HARNESS & SENSOR(24V/EARTH TYPE) 0CF50-M00170_0050_01 Information FIG 51. WIRE HARNESS & SENSOR(24V/EARTH FLOAT TYPE) 0CF50-M00170_0051_01 Information FIG 52. WIRE HARNESS & SENSOR(12V) 0CF50-M00170_0052_01 Information FIG 53. SUB HARNESS & NEUTRAL SWITCH 0CF50-M00170_0053_01 Information FIG 54. HEATER PLUG 0CF50-M00170_0054_01 Information FIG 55. INSTRUMENT PANEL(D-TYPE)(24V) 0CF50-M00170_0055_01 Information FIG 56. INSTRUMENT PANEL(D-TYPE)(12V) 0CF50-M00170_0056_01 Information FIG 57. INSTRUMENT PANEL(B-TYPE/24V) 0CF50-M00170_0057_01 Information FIG 58. TOOL 0CF50-M00170_0058_01 Information FIG 59. TOOL(OPTIONAL) 0CF50-M00170_0059_01 Information FIG 6. MOUNTING FOOT(SHOCK ABSOBER) 0CF50-M00170_0006_01 Information FIG 60. CONTROL BOX(ELECTORIC TROLLING) 0CF50-M00170_0060_01 Information FIG 7. LABEL 0CF50-M00170_0007_01 Information FIG 8. CYLINDER HEAD 0CF50-M00170_0008_01 Information FIG 9. BONNET 0CF50-M00170_0009_01 Information
